1/5 Scale RC Desert Truck FID Voltz V2, All Wheel Drive & Solid Rear Axle

Name: 1/5 Scale RC Desert Truck FID Voltz V2, All Wheel Drive & Solid Rear Axle
SKU: GZ
Price: 49.99 USD
Availability: InStock

$49.99 USD

Shipping calculated at checkout.

Quantity

Note: Due to tariff issues, the factory is clearing out the stock. Limited time offer products, limited stock, if payment fails, please refresh the page to check the information again and reconfirm.

Overview

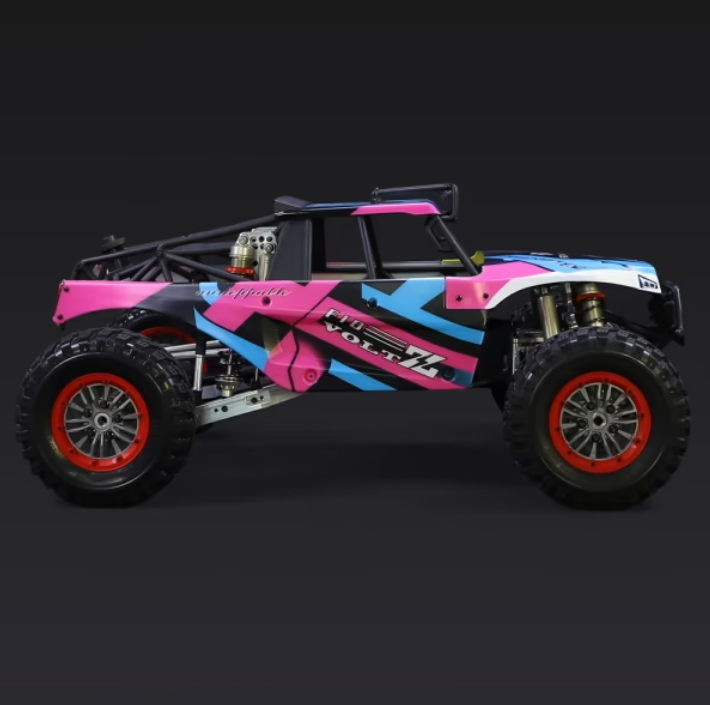

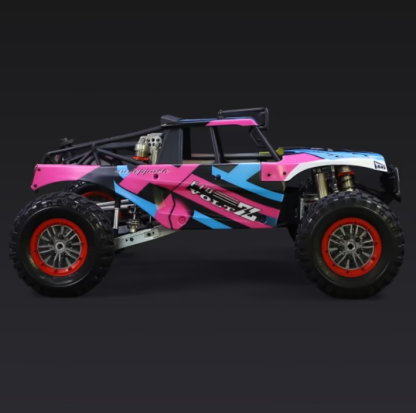

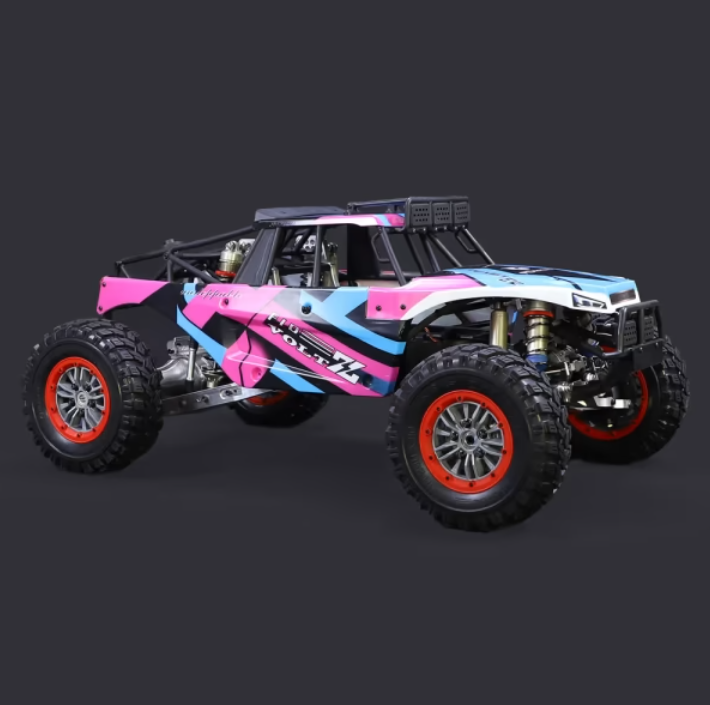

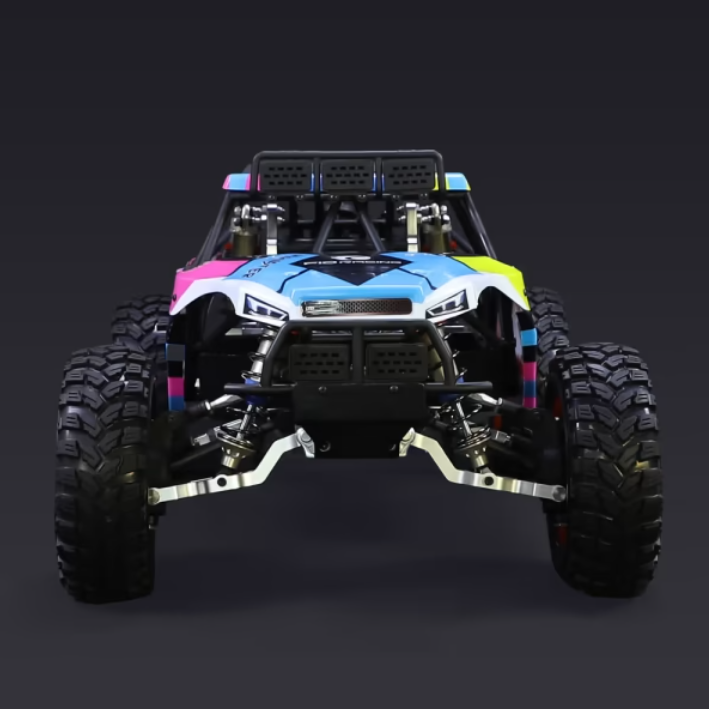

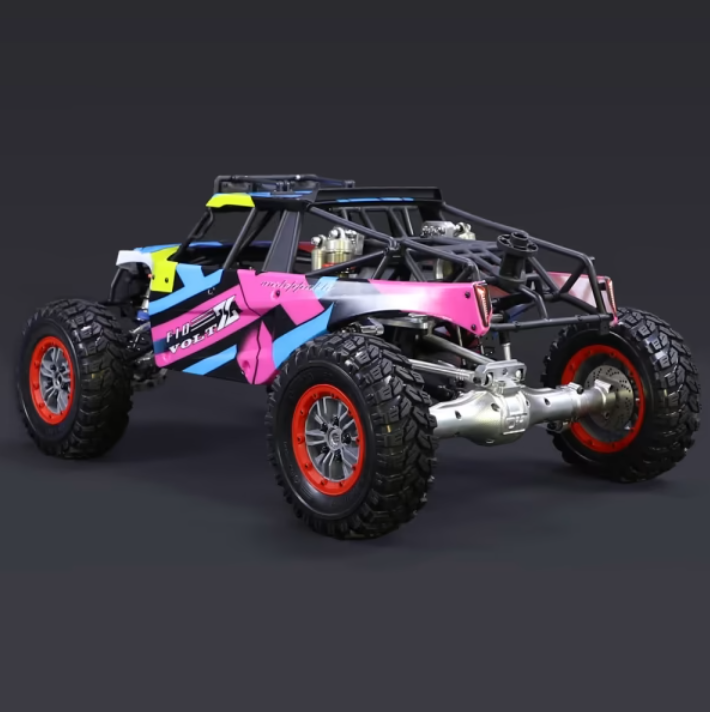

Unleash the rugged capability of the FID Voltz, a 1/5 scale desert truck built for the toughest off-road challenges. This large-scale RC model comes equipped with a powerful 12S Hobbywing power system and is designed to handle diverse terrains with ease. Featuring a robust rear solid axle, front independent suspension, and a dual shock system, the Voltz offers superior control and durability. Its 4-wheel drive system, complemented by three differentials and anti-explosive belted tires, ensures reliable traction and speed. Crafted from all-metal components and fully upgraded, the Voltz is also ready to accommodate our proprietary hydraulic braking system, setting new standards in RC performance and design. Dive into the adventure with FID Voltz and experience a new pinnacle of RC innovation.

FID Voltz will have two options: Roller KIT and RTR 12S, and 2 Shell options. This time we added a towhook mount. 4 × wheel hydraulic braking system will be available and serves as an add-on. More fun are to be found on this unique thing.

Specifications

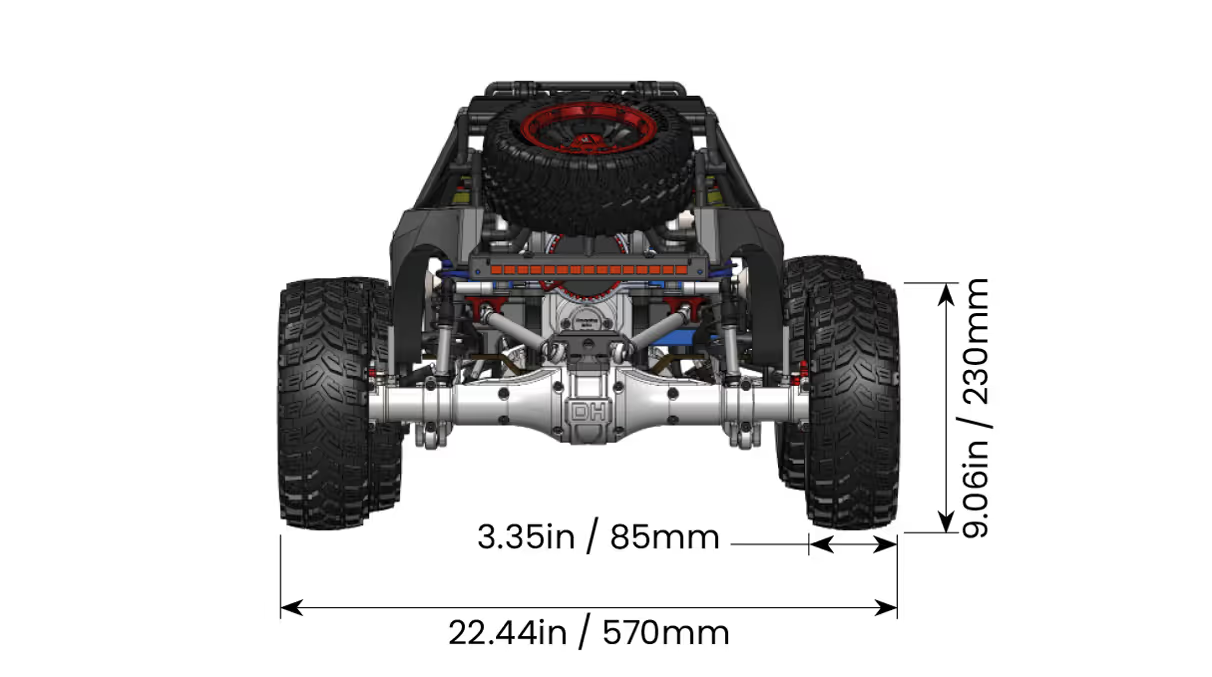

Size (L × W × H): 35.83 × 22.44 × 16.69in / 910 × 570 × 424mm
Roller Weight: 40.79lb / 18.5kg
RTR: 59.52lb / 27kg including 2 × 6S batteries
Ground Clearance: 5.51in / 140mm
Tyre: 9.06 × 3.35in / 230 × 85mm, 0.24in / 6mm thick tire tread, natural rubber
Battery Tray: L 7.48in / 190mm × W 2.95in / 75mm × H unlimited (mm)
Chassis: Alloy 6061-T6, U-Shape 5mm thick, CNC machined and Anodized
Wheel Rim: Nylon PA6, real life scale 5 × lugs fastened wheel
Wheet Hub: CNC machined billet alloy, comes with brake disc ready
Roll Cage: Nylon PA6, 0.39in / 10mm dia.
Shell: 0.06in / 1.5mm thick PC sheet
Gear Module: 0.06in / 1.5mm
Total Gear Ratio: 1/11.025
Max Speed: 68.35mph / 110km/h
Recommended Steering Servo: 2 × 154.32lb / 70kg Metallic Servos
Steering: Ackermann Steering Mechanism, designed with automatic return-to-center and protection of servo against impact or too much turning force
Recommended ESC: HobbyWing Max4 300A 12S
Recommended Motor: HobbyWing 70125SD Motor in 560KV
Connector: QS80 connector
Optional Braking System: 4 wheel Hydraulic Braking System, Front / Rear independent controlled, 2 × hydraulic pumps in CNC alloy 7075, 2 × drive motors, 2 × cylinders / caliper, 4 x float calipers

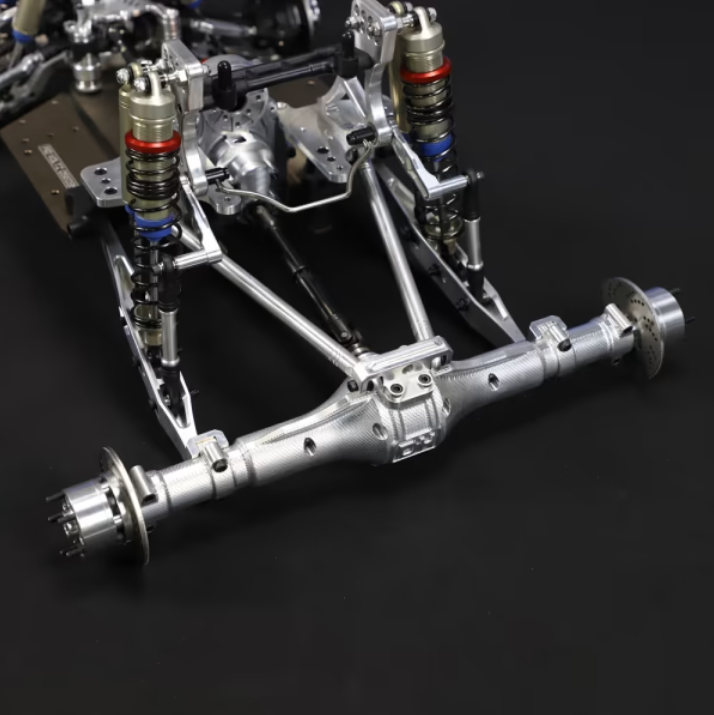

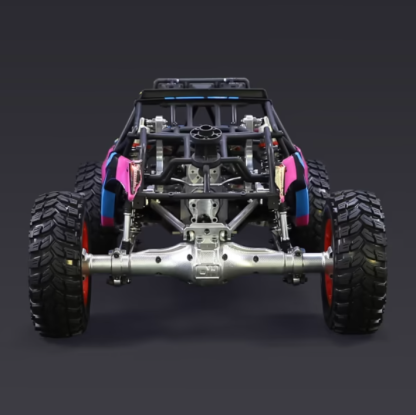

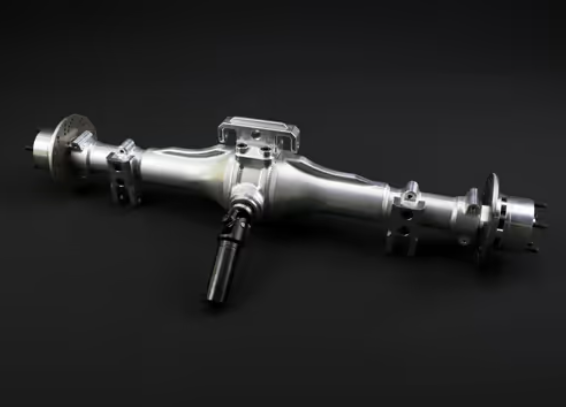

Solid Rear Axle

Housings made of one-piece alloy 6061-T6 via CNC, with beautiful tooling marks. 0.16in / 4mm thick brake disc compatible with FID Racing hydraulic braking system. Inside the axle is a metallic differential as introduced above. Wheel hub comes with 5 × lugs adapter, stable and real-life.

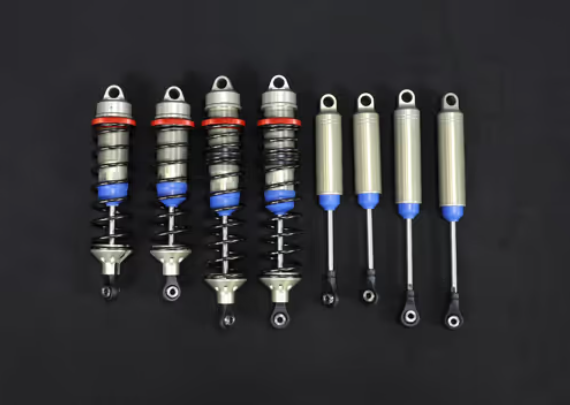

Shocks

Alloy 7075-T6 shock bodies with better abrasion resistance. Inner plugs made of best Polyoxymethylene (POM) material. Dual seal ring design, 0.28in / 7mm dia. shaft. Springs made of 0.12in / 3mm dia. music wire, treated with hardening process and black-oxidation. Rear shock consists of two springs.

Differentials

3 diffs. Small crown gears made in powder metallurgy method. Spur gear of 20CrMnTi gearing steel via CNC. Diff housing of alloy 6061-T6. 60T big gear and 2 × covers of 45#steel via CNC (equivalent to US 1045 steel and Europe C45 steel), surface black-oxided. Drive cup in 65Mn spring steel. Differential Lubricant in 50000cSt.

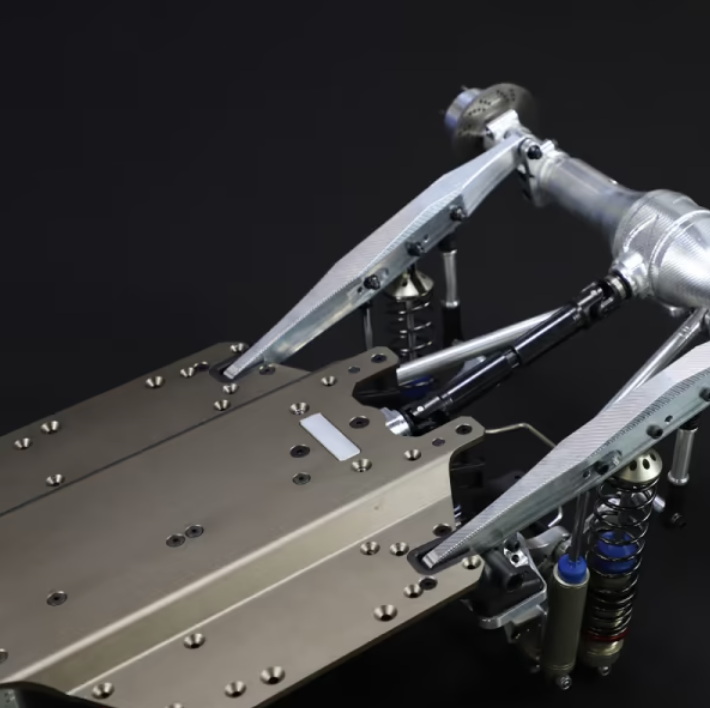

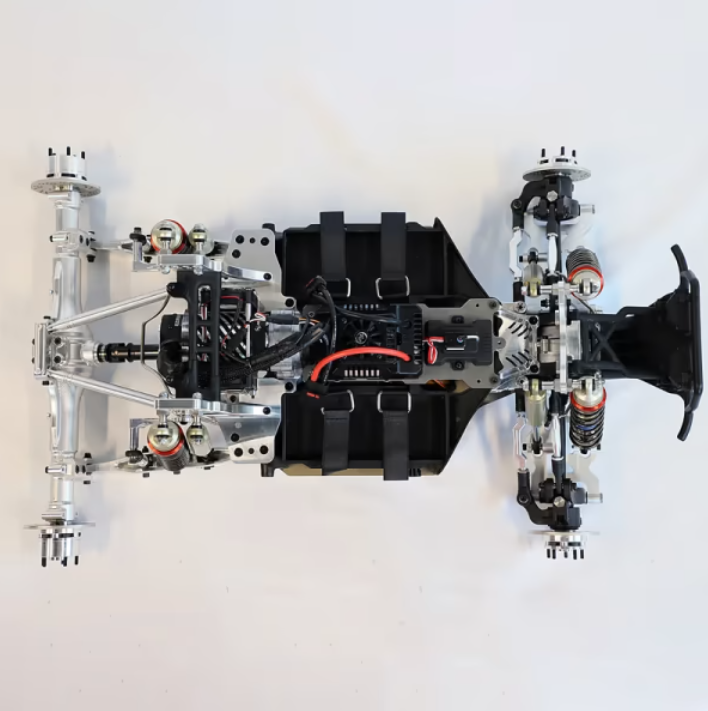

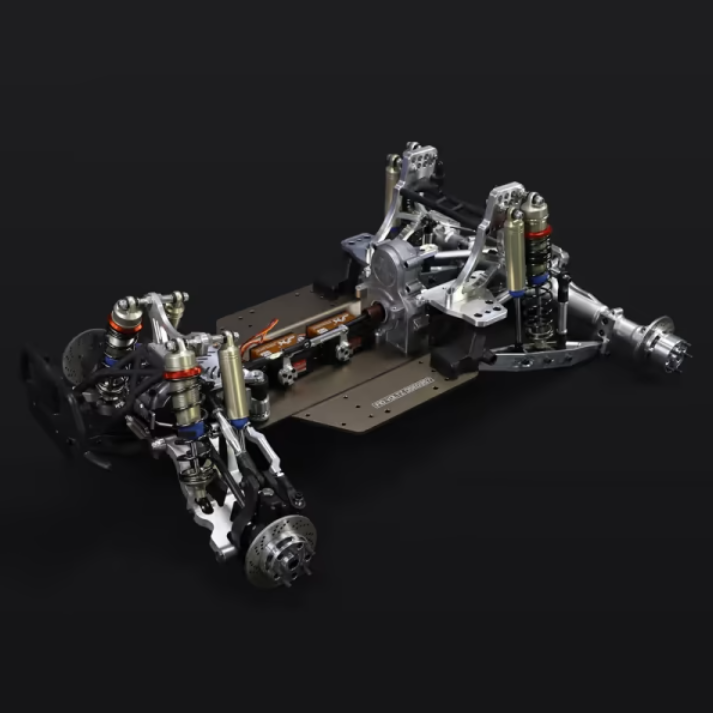

Chassis

One-piece formed chassis protective plate, made of 0.20in / 5mm thick aluminum alloy 6061-T6, CNC cut, and rolled up slightly in the center to strengthen. Each comes with an unique number for aftersales tracking.

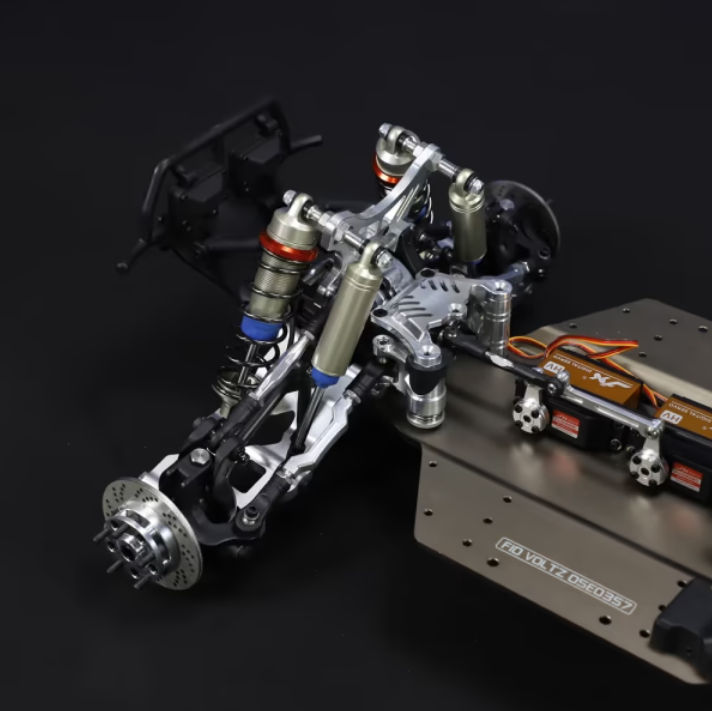

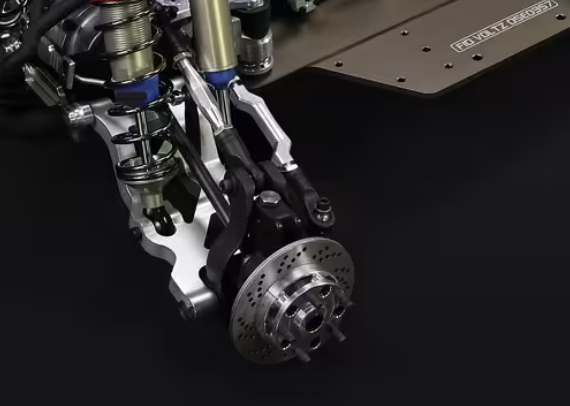

Steering

Ackermann steering system design, automatic return-to-center, servo protection mechanism against big impact or too much turning force. Steering drive comprised of 2 × 154.32lb / 70kg metallic servos, and adjustable sync servo arms, solid and quick response.

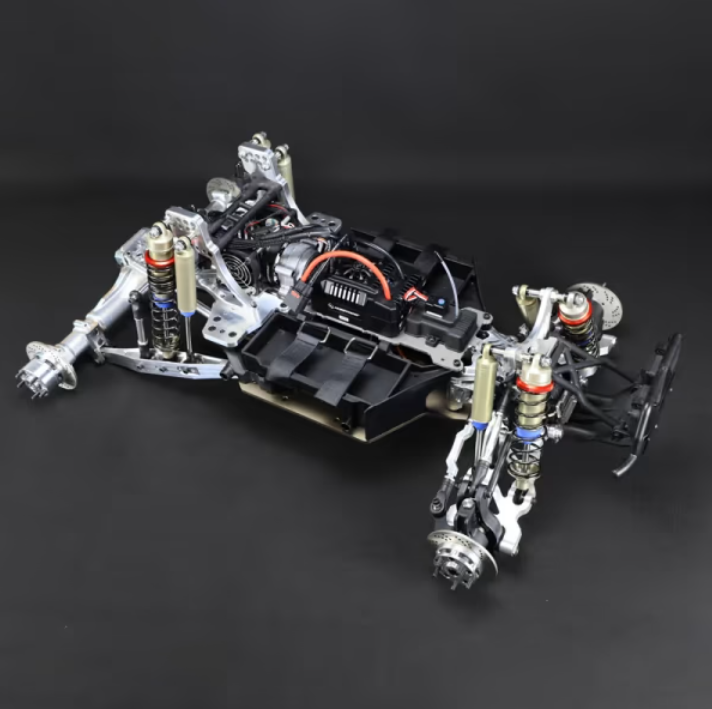

12S Power System

Power system is popular HobbyWing Max4 combo including a 560KV sensored brushless motor and a 300A / 12S sensored brushless ESC. It supports Bluetooth addon and enables Voltz to max speed 116km/h. Besides its excellent linearity provides smooth operation.

Anti-Explosion Tomahawk Tire

Tomahawk updated to belted tire, no more explosion at high speed. Wheel rim is redesigned and made of nylon material, comes with inside and outside red beadlock rings, real-life scale. Off-road tread with foam insert provides high traction.
