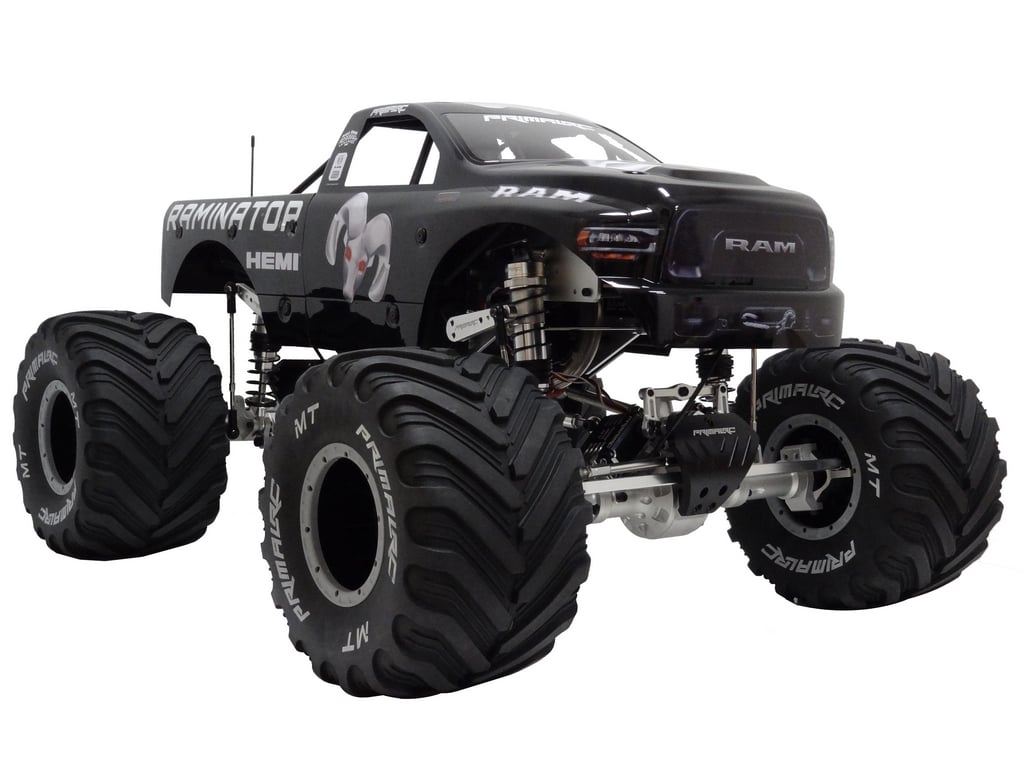

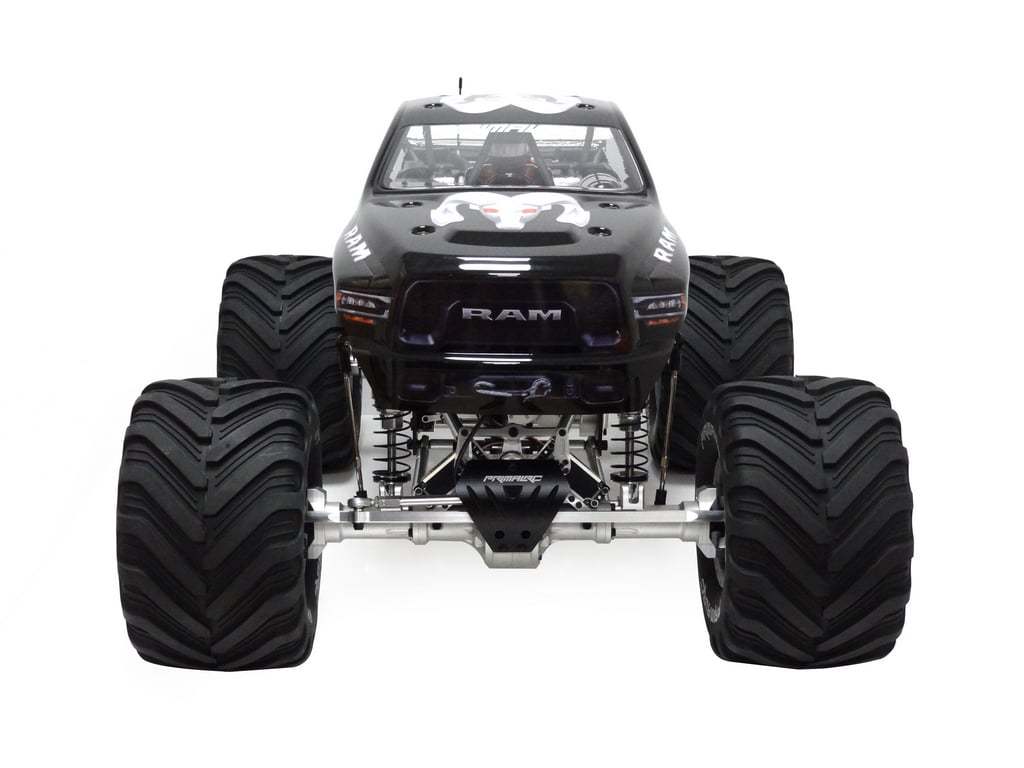

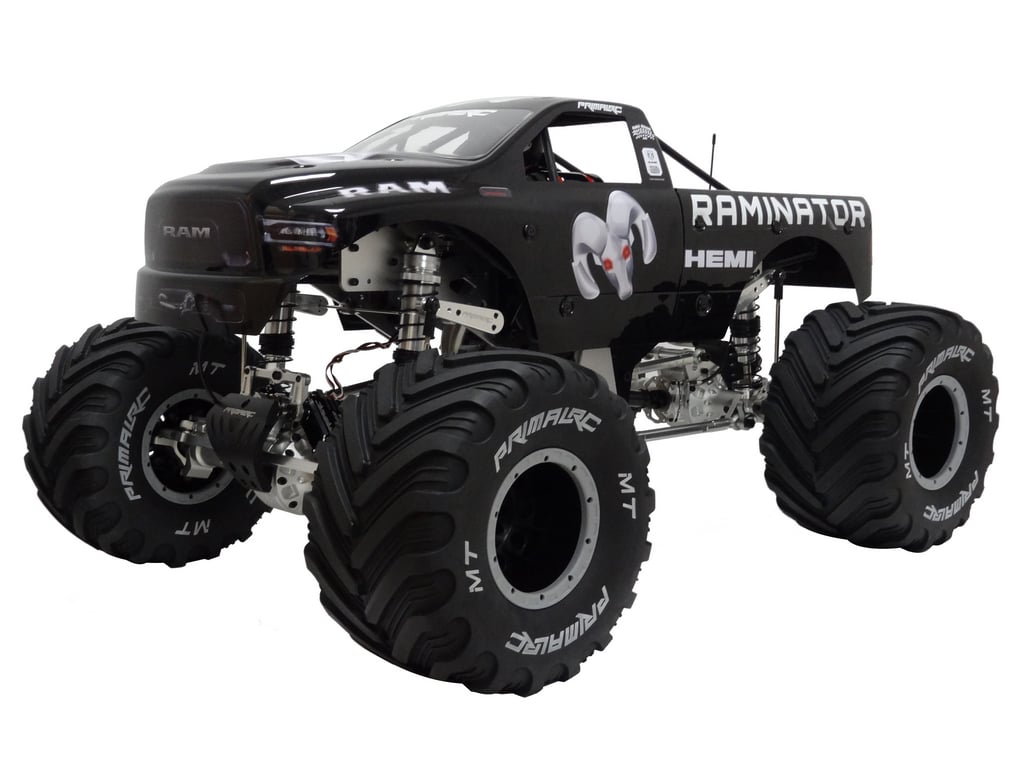

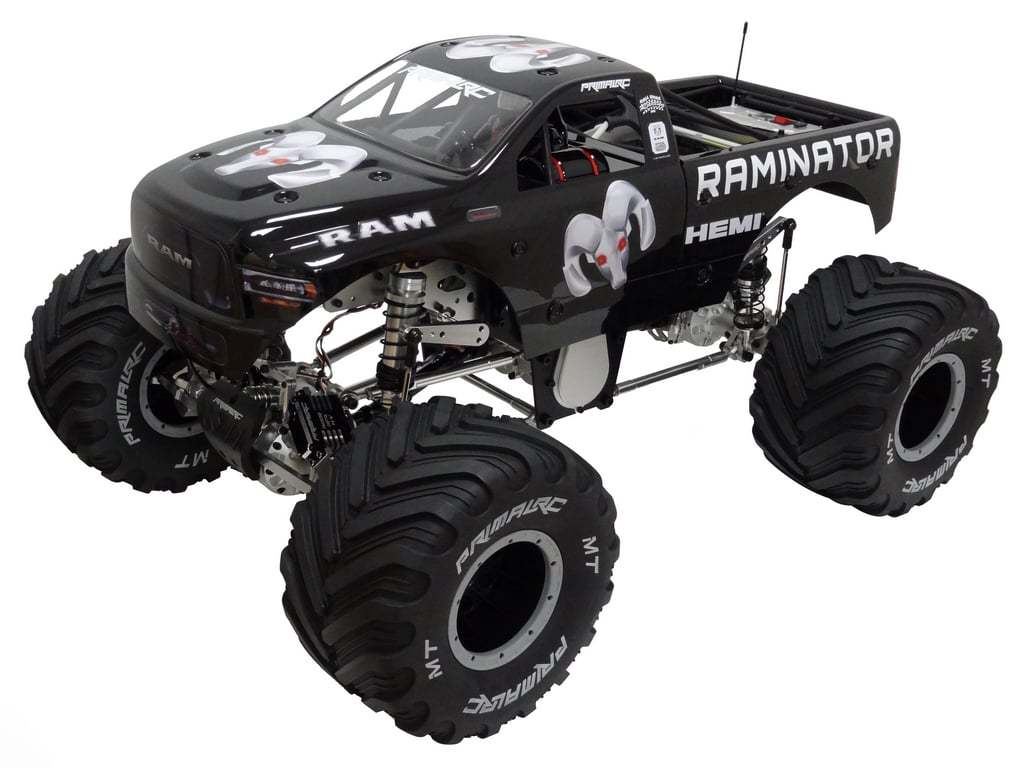

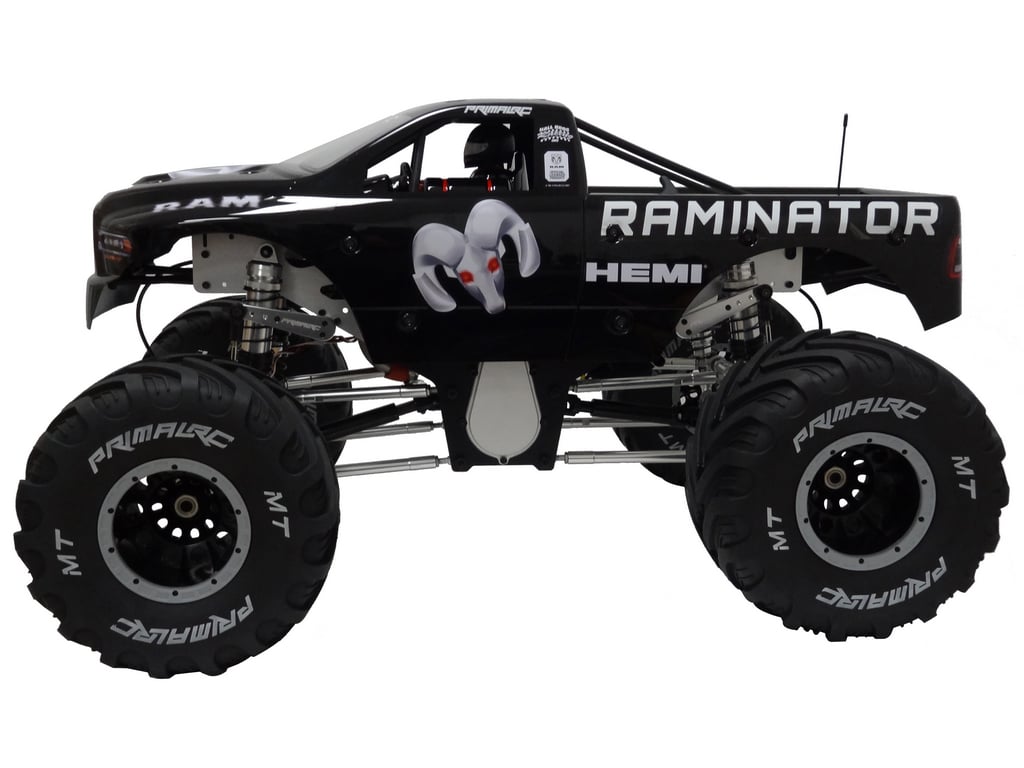

1/5 Scale Raminator Monster Truck

Due to shipping limitations, each order is capped at 1 items. For larger quantities, please place multiple orders. Thank you for your understanding!

We’re Happy to offer you our latest creation from Primal RC the New 1/5 Scale V4 Ready to Run 4X4 Raminator Monster Truck! It’s a real Gas powered 4 wheel drive solid axle Monster Truck, weighing in at 85 pounds this one is not for the faint of heart. We tried our best to make this perform as close to possible to scale as a real-life Monster truck. We built it very strong and wanted to make something truly special for the world of RC. You can set this up for great fast monster truck performance or gear it low for awesome rock crawling. Five different gear ratio combinations are included! This truck is just about unstoppable but when you do get yourself in a jam just hit the reverse switch from the transmitter to back out of just about any situation. I hope you love this as much as I do!

Description

This new V4 Trucks will now come with all the upgrades that the V3 Truck have plus the following:

• (2) Upgraded 130KG HV All metal cased brush-less Steering Servos.

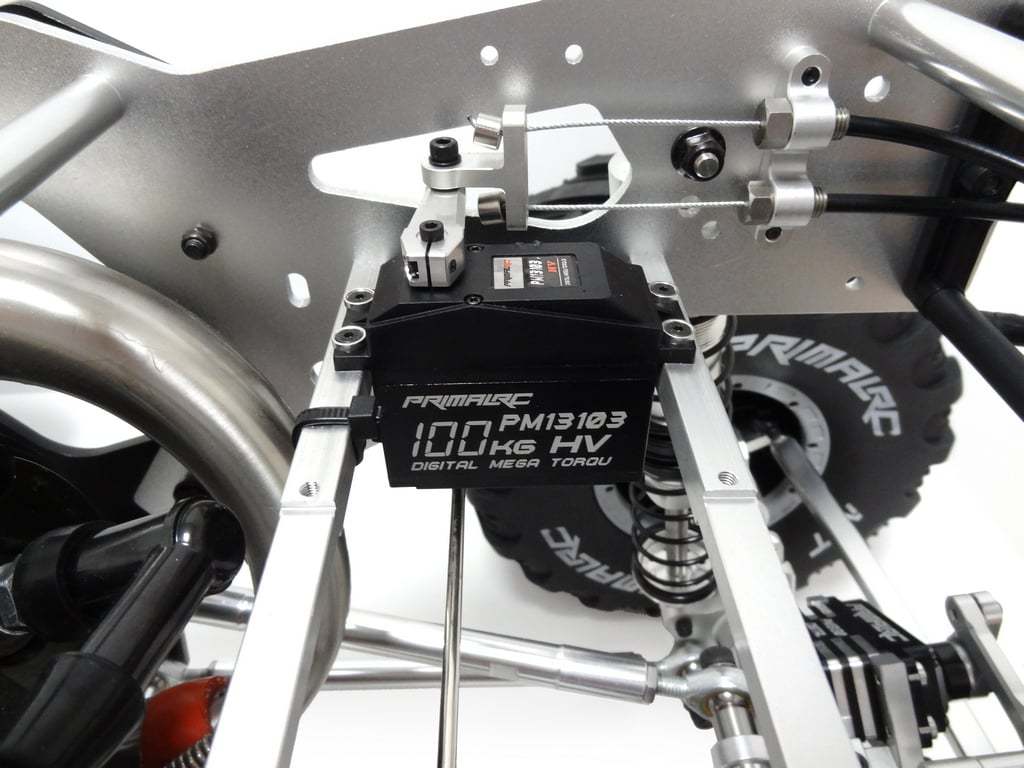

• Upgraded 100KG HV brush-less brake servo.

• Upgraded V4 Single bar steering linkage.
• Upgraded V4 Differentials.

• Upgraded V4 adjustable aluminum sway bars.
• Upgraded V4 Aluminum Enclosed Battery box with charging port for new upgraded 8.4v NIMH battery.

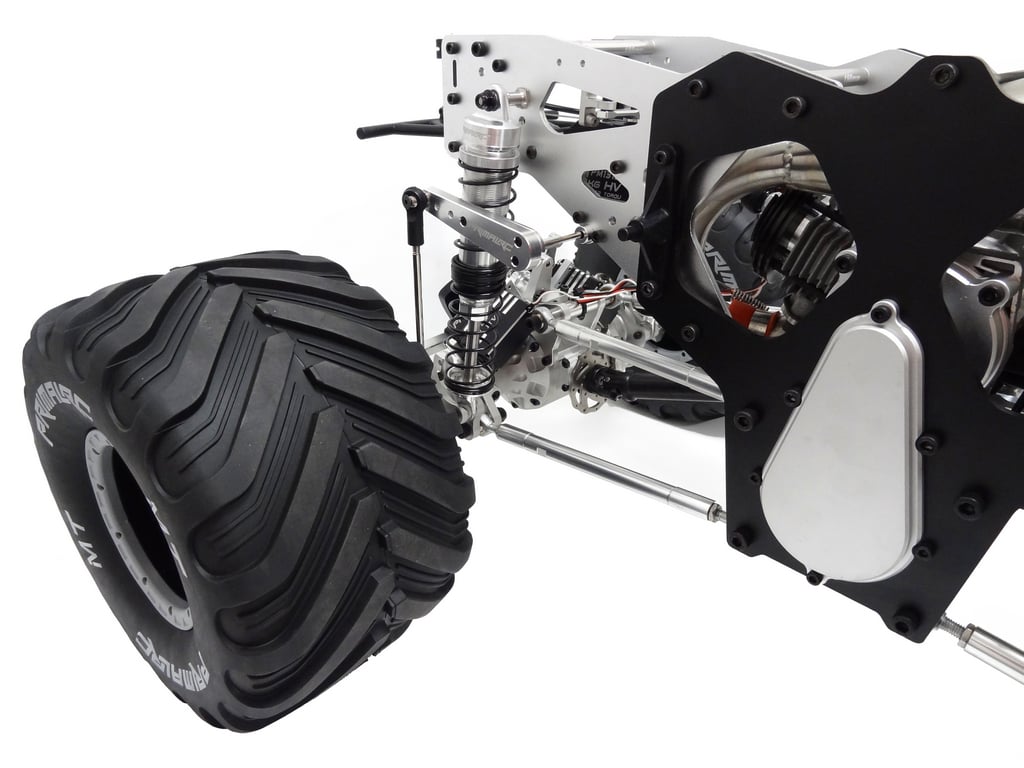

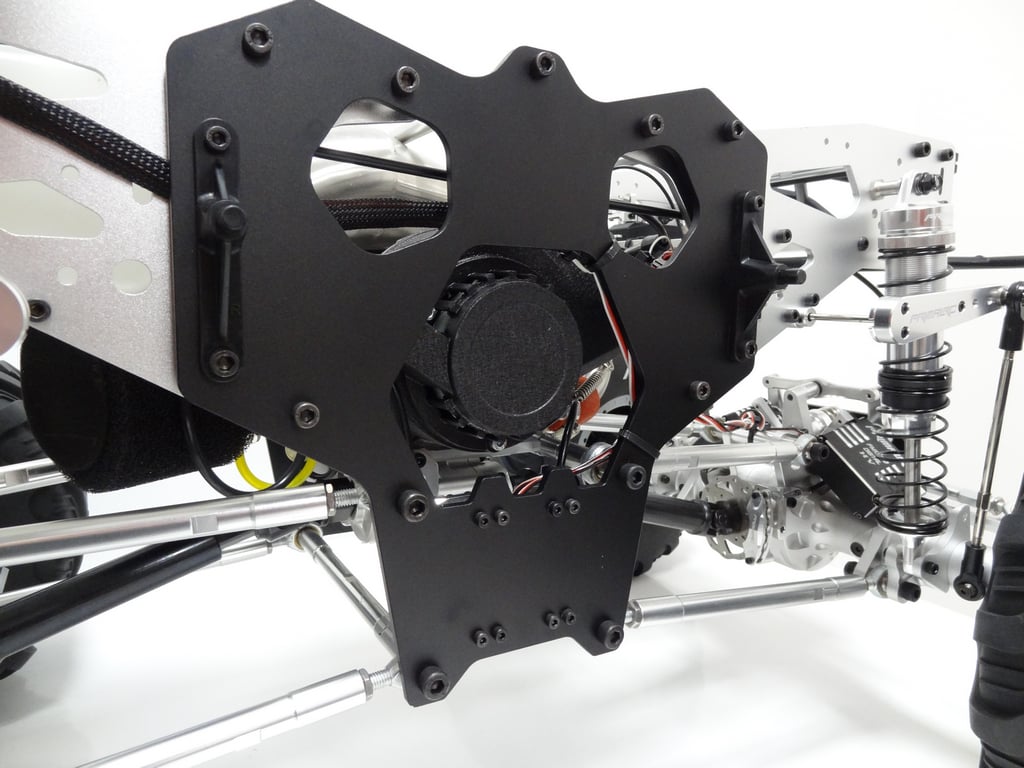

• Upgraded V4 redesigned side frame lets you have easy access to the pull start and engine removal/access.

• Upgraded V4 MEGA Shocks with new lower oil seal.


Due to its size and weight, we only recommend this for advanced RC Drivers! Some assembly will be required due to the size of this. (Shipped in 2 boxes)

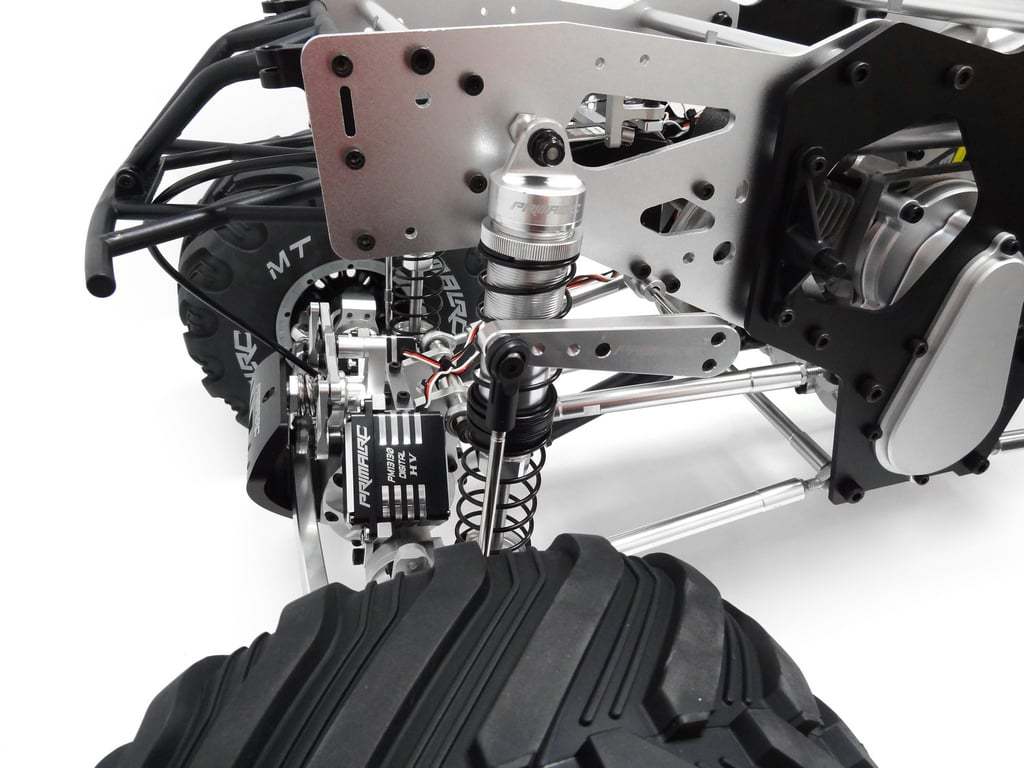

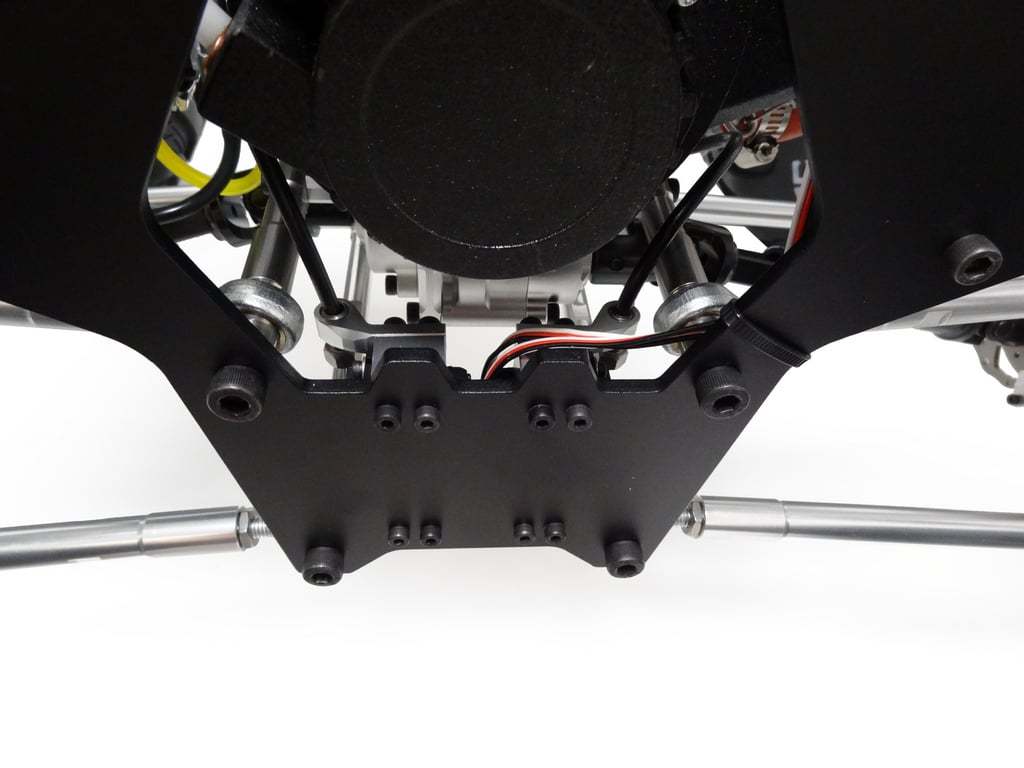

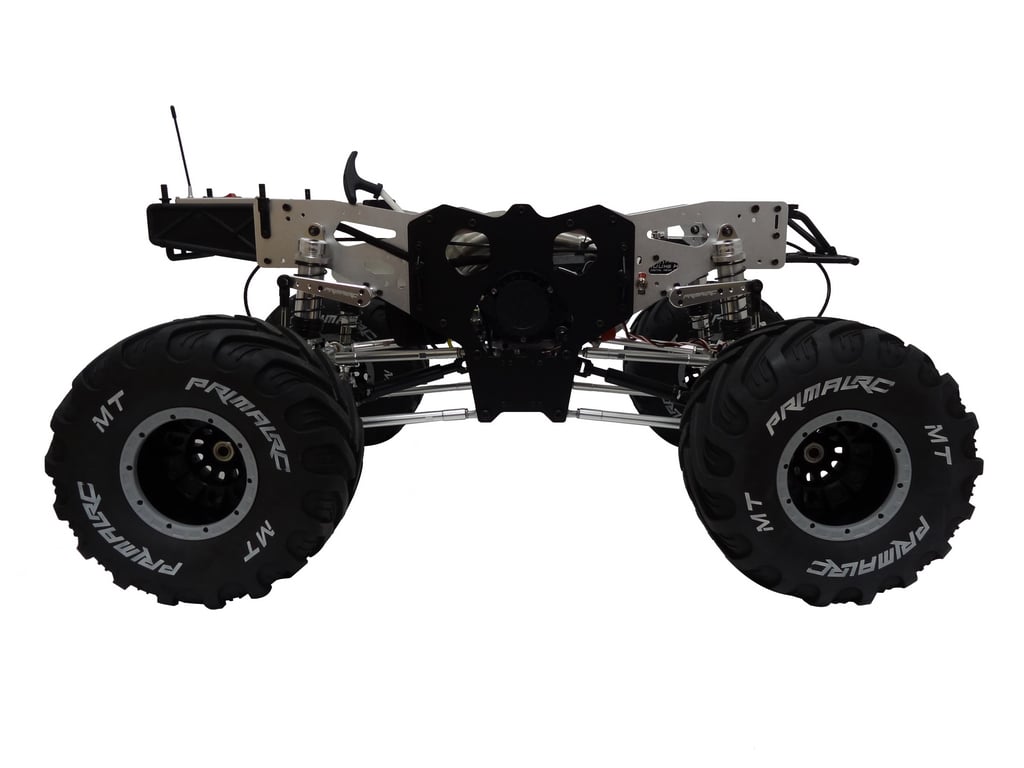

• Six Piece Modular 5mm thick CNC Aluminum chassis with V4 redesigned side frame.

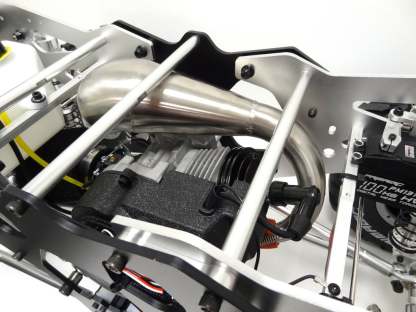

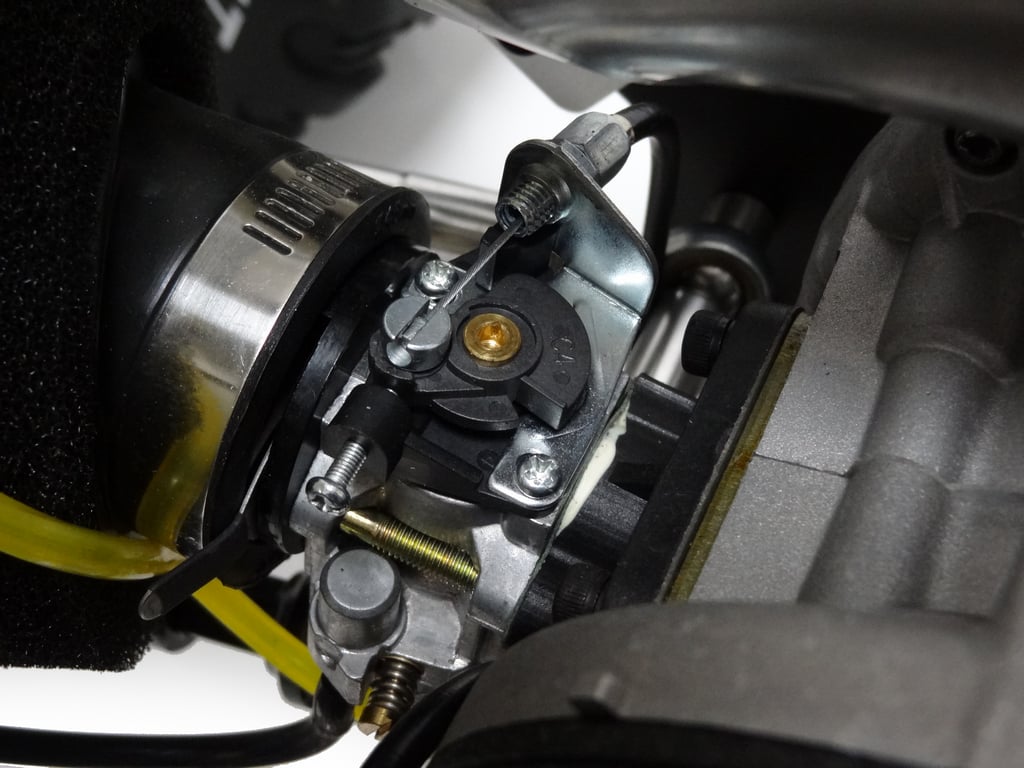

• 49cc 4 bolt 2 stroke reed valve 2 stroke pull start engine with remote engine kill switch!

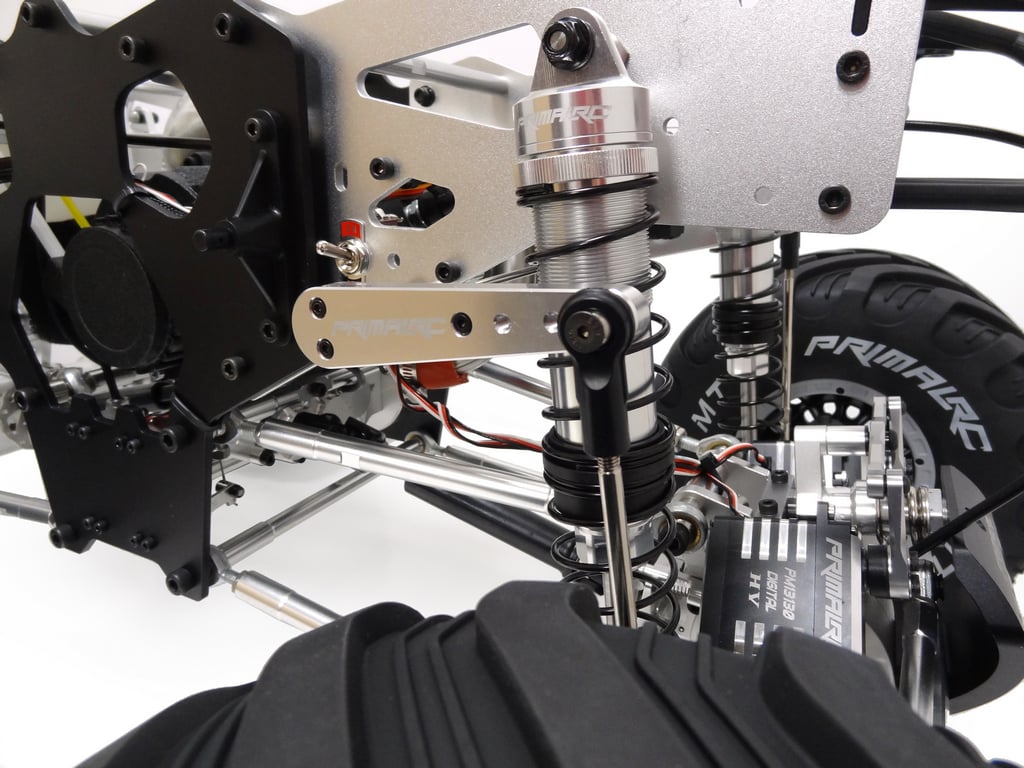

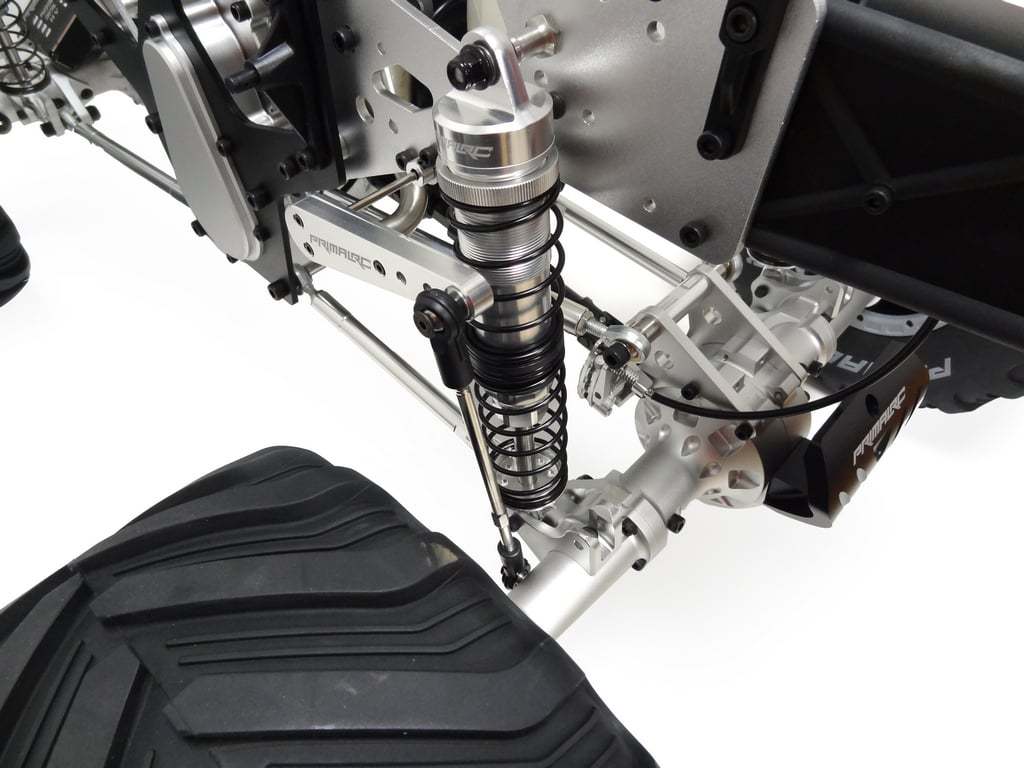

• V4 MEGA Shocks with huge 10mm shock shafts and new lower shock seals.

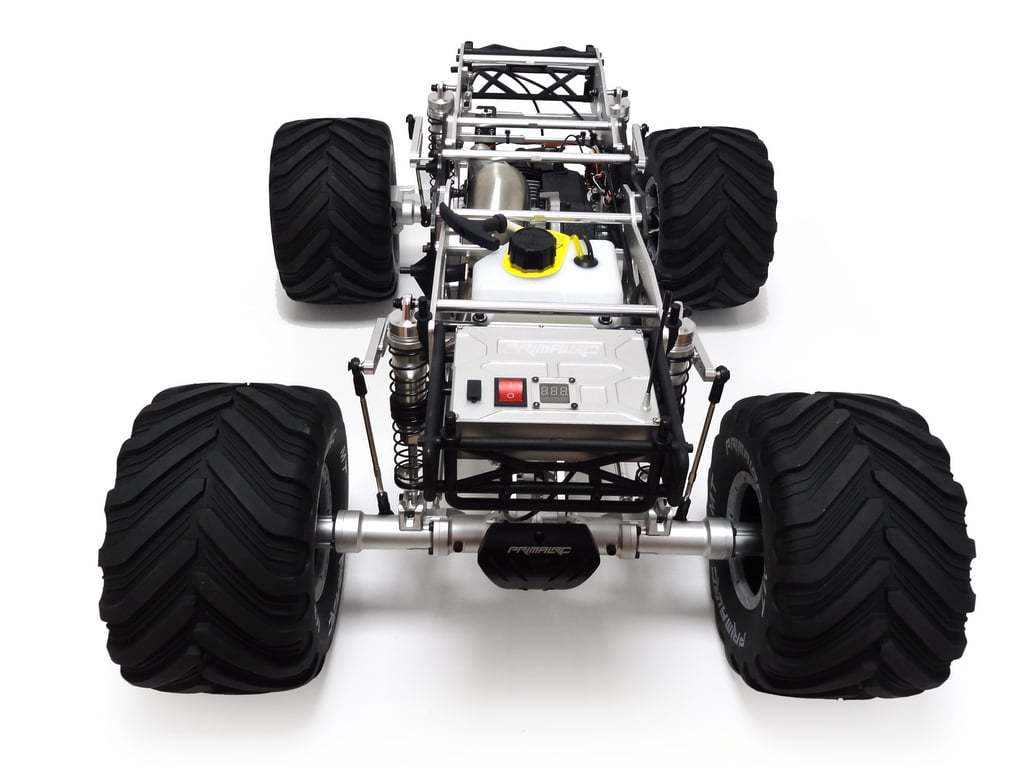

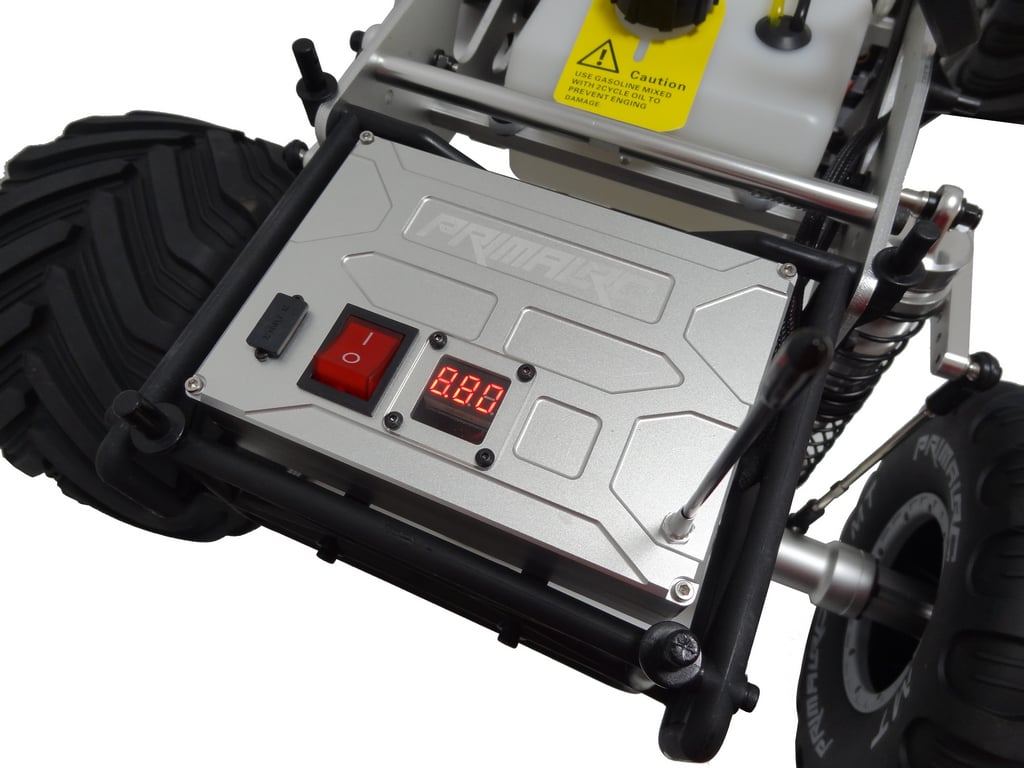

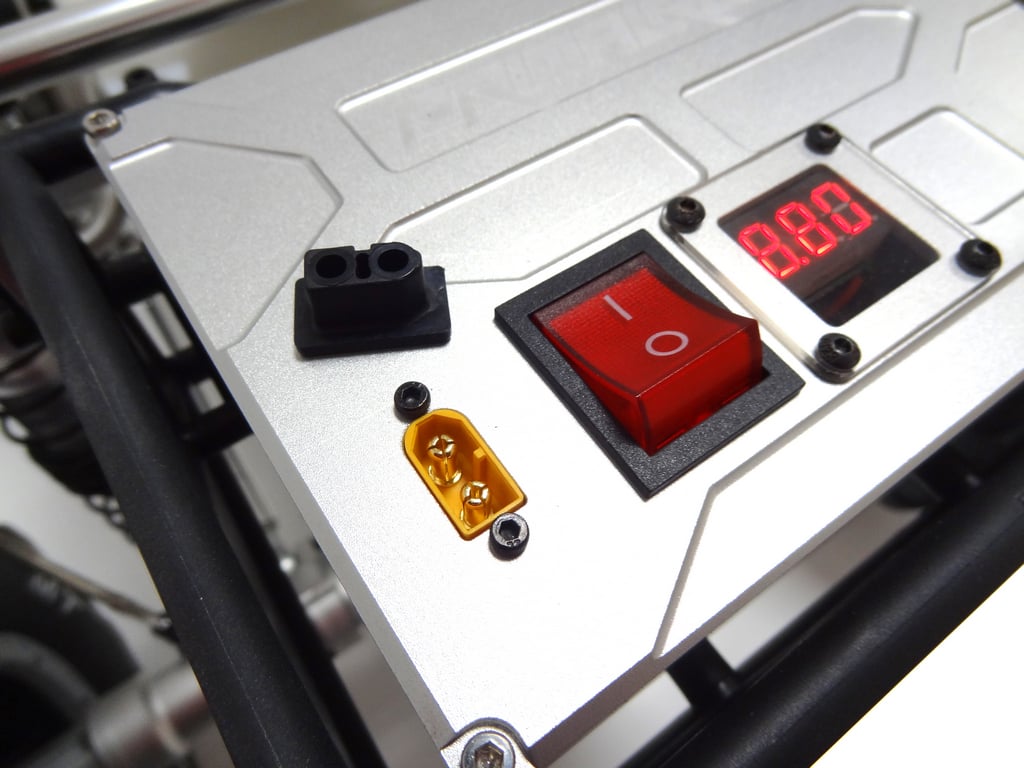

• Aluminum Enclosed Battery, Receiver and Remote Kill Switch Box, charging port with Voltage Meter.

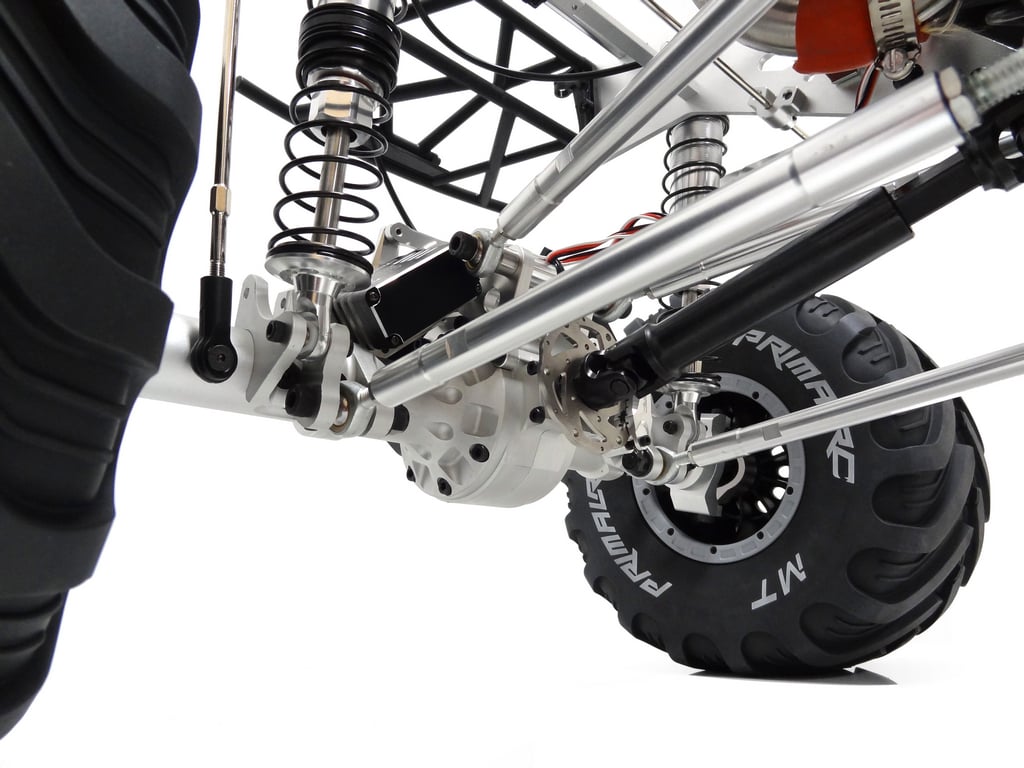

• Adjustable aluminum 4 link suspension with steel heim joint ends.
• Large 78mm Centrifugal Clutch.

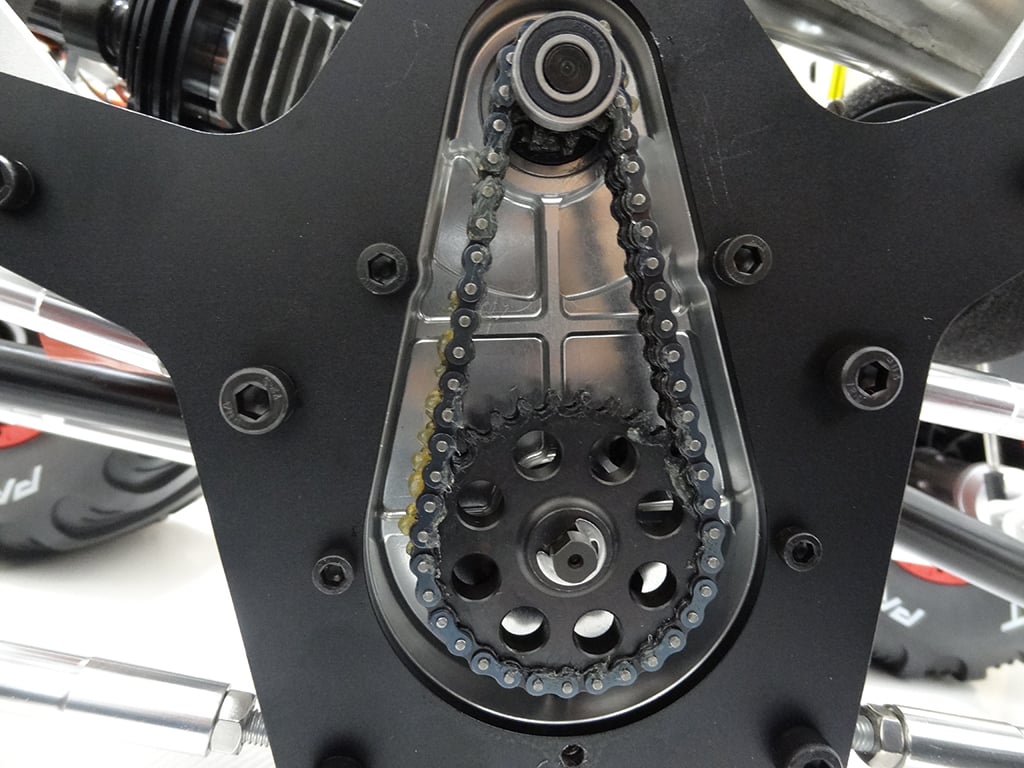

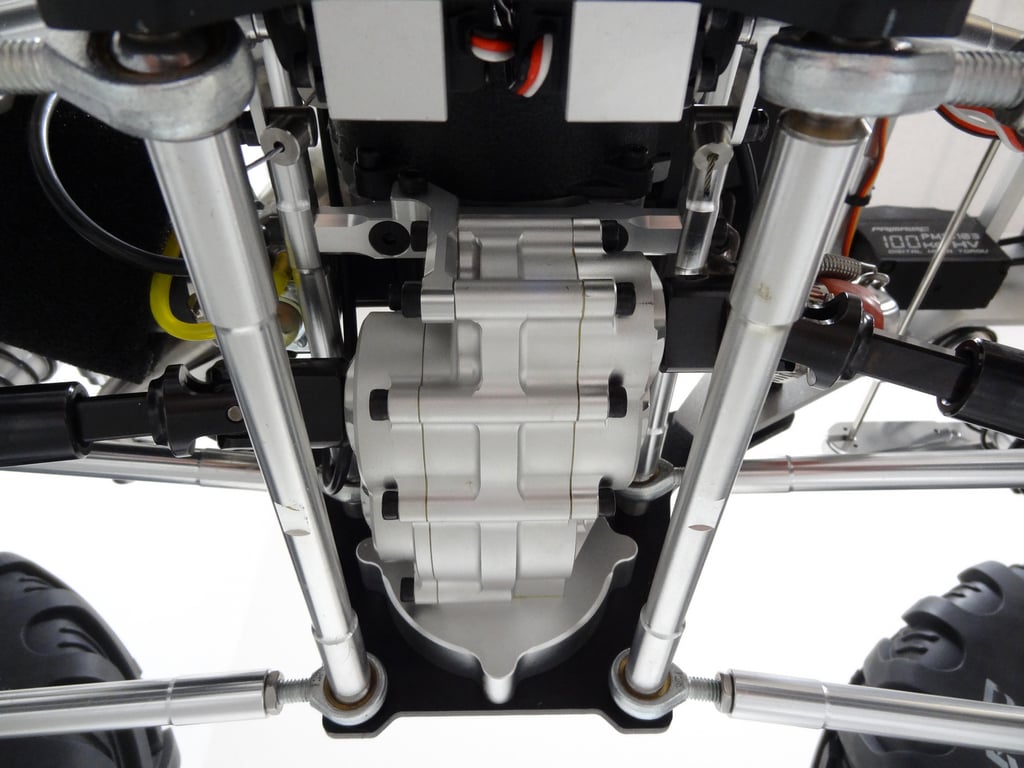

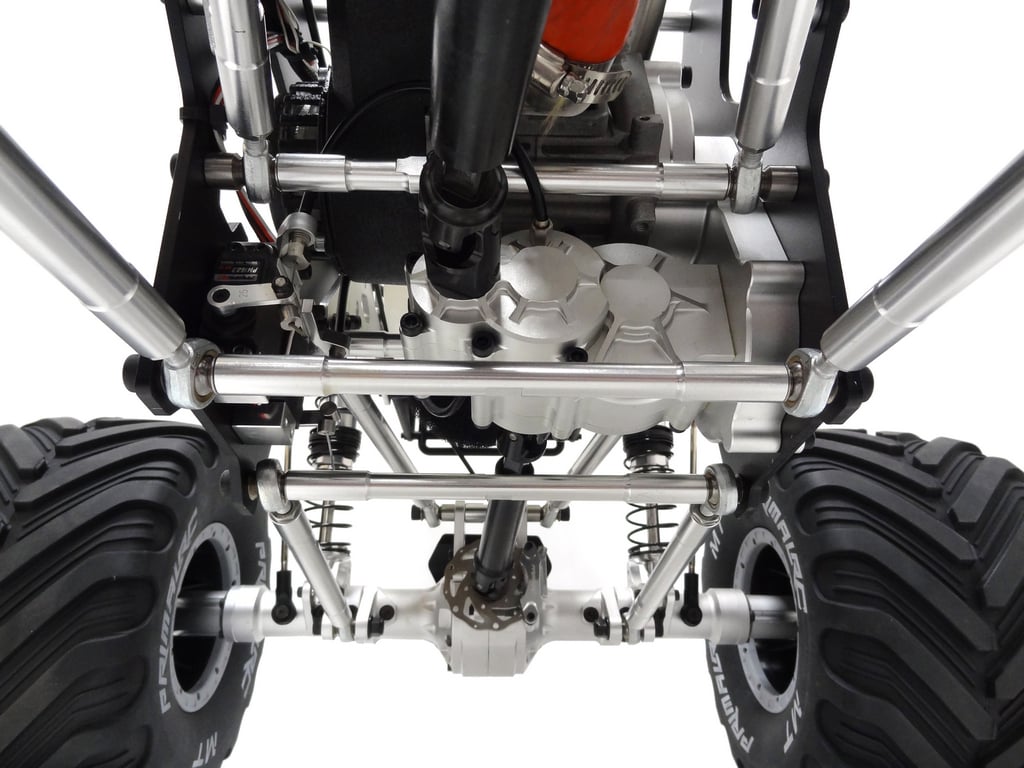

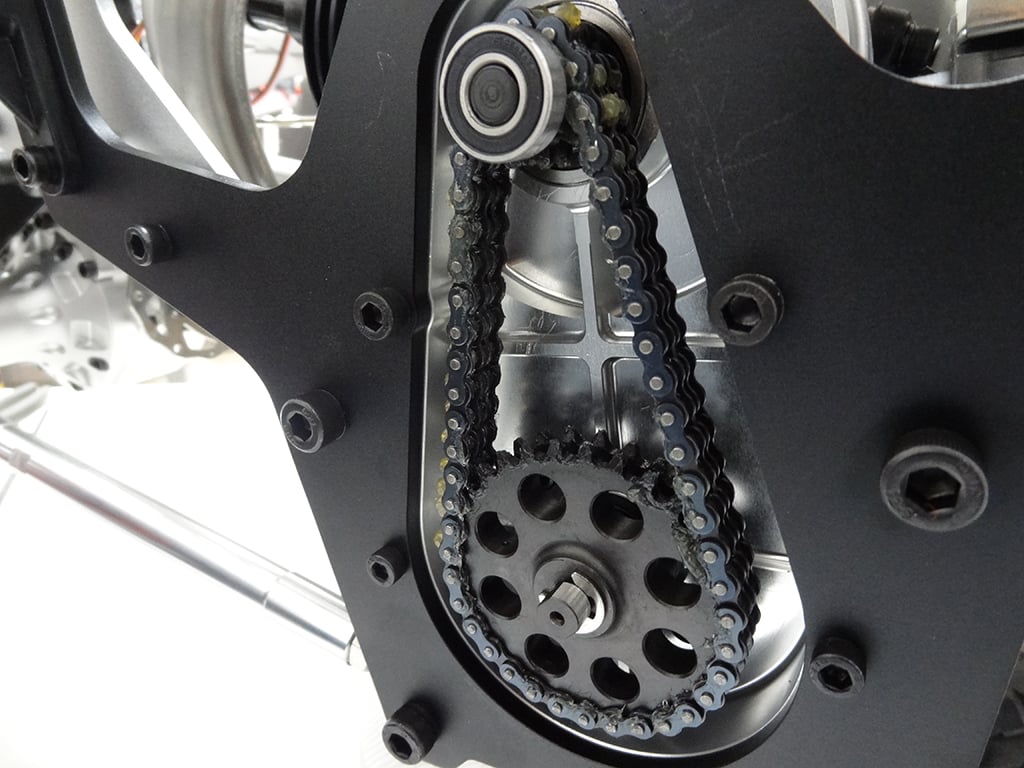

• All Steel HD drive train and double chain driven single speed transfer case with counter rotating drive shafts.
• 5 different interchangeable gear ratios to choose from.
• Heavy Duty CNC Aluminum modular Axles.
• Front and rear CNC cased oil filled V4 differentials with HD out-drives for awesome on road or off-road performance.
• Huge 12″x 7.5″ Monster Truck tires mounted on 24mm hex bead-lock Nylon rims with inner tire foams.

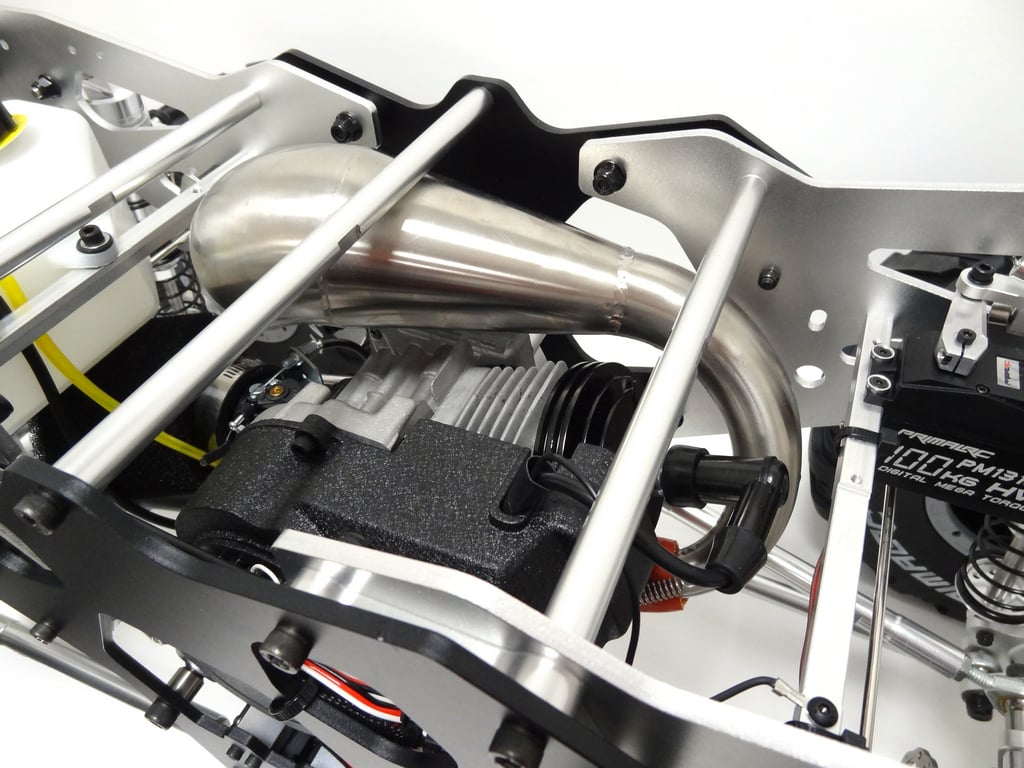

• Stainless Steel Tuned pipe for maximum performance and sound.
• V4 Front and Rear Aluminum Sway bars.

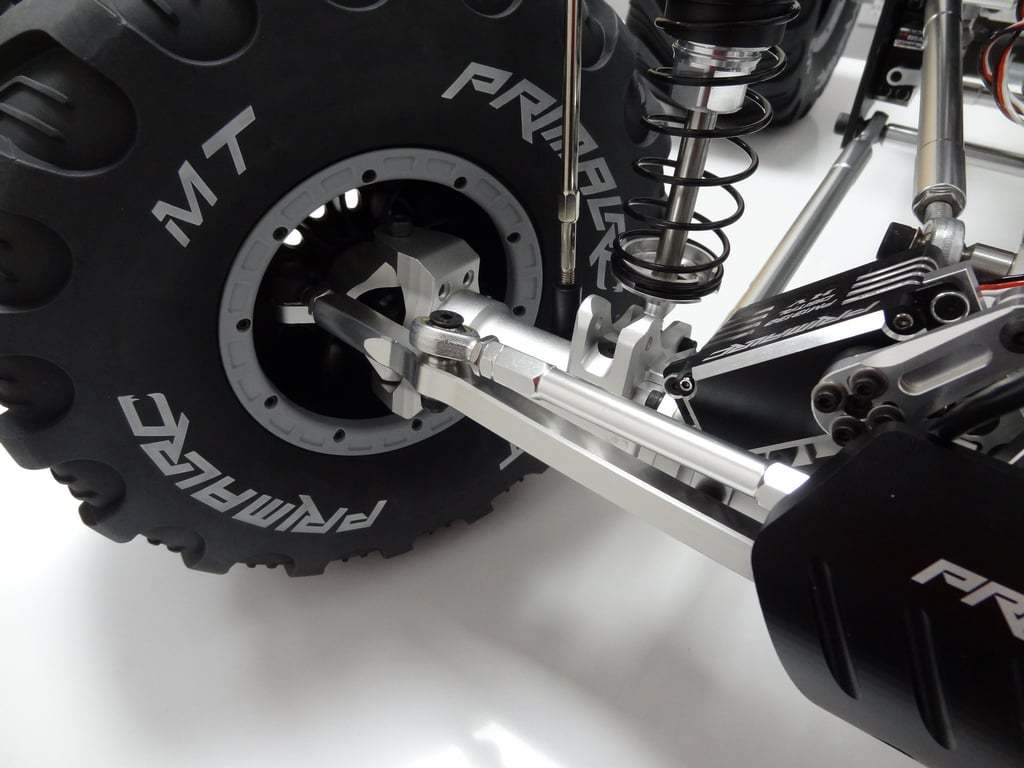

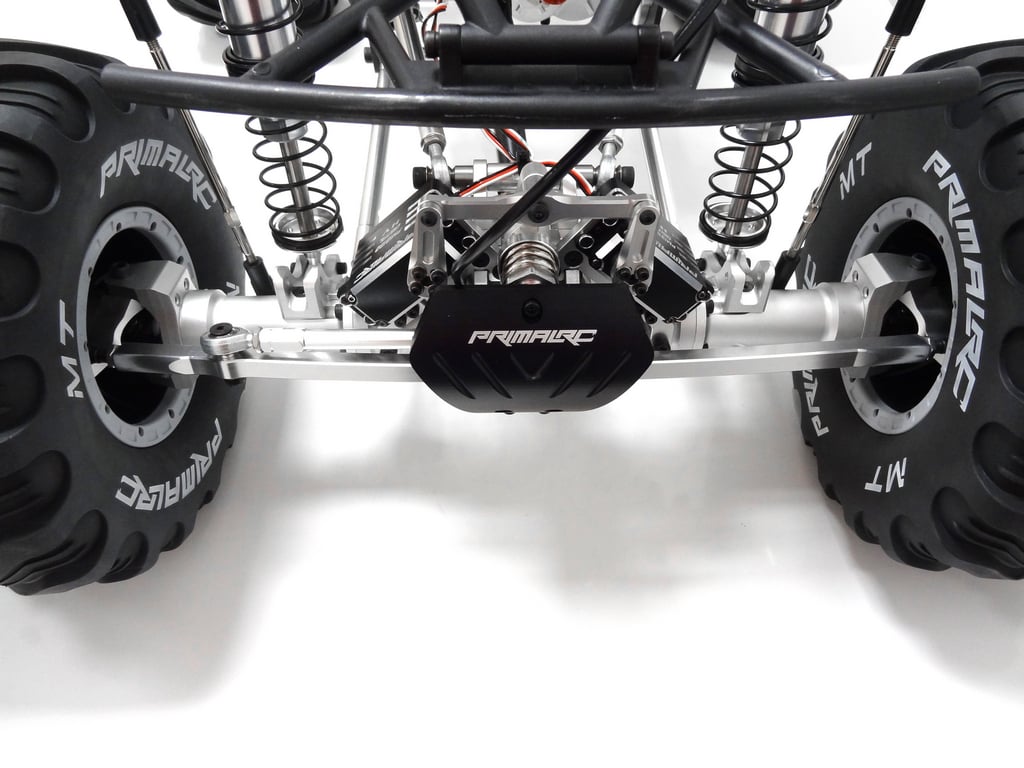

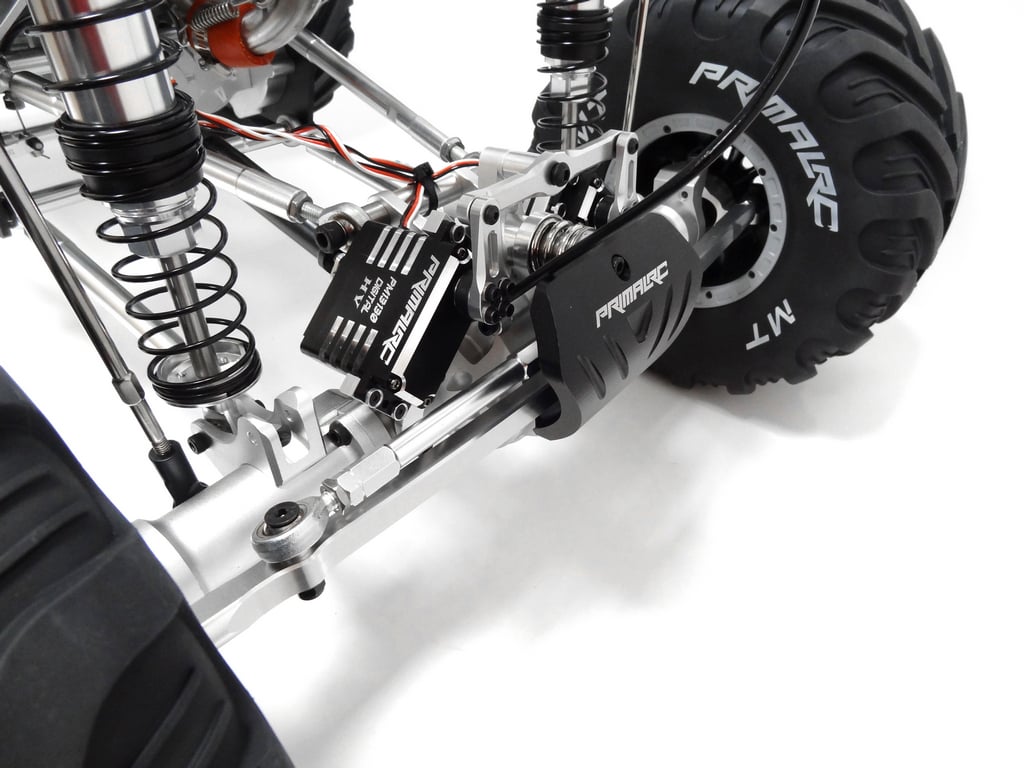

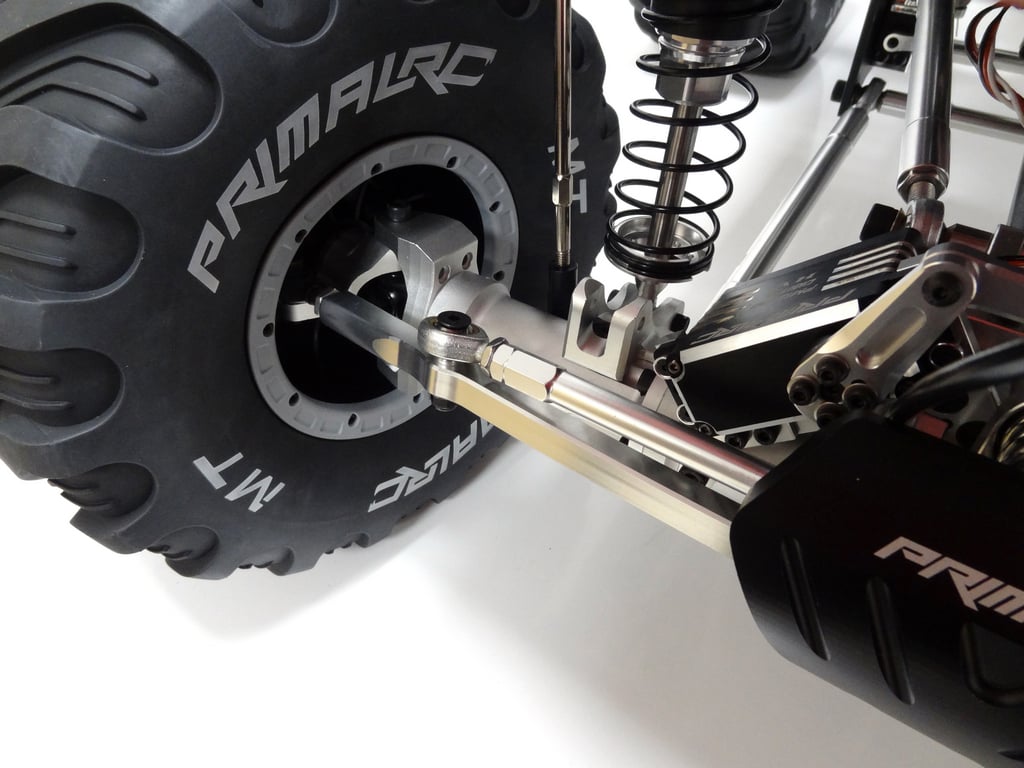

• Dual 130KG Steering Servos with inter grated adjustable servo saver system, V4 single steering bar system with steel heim joints.

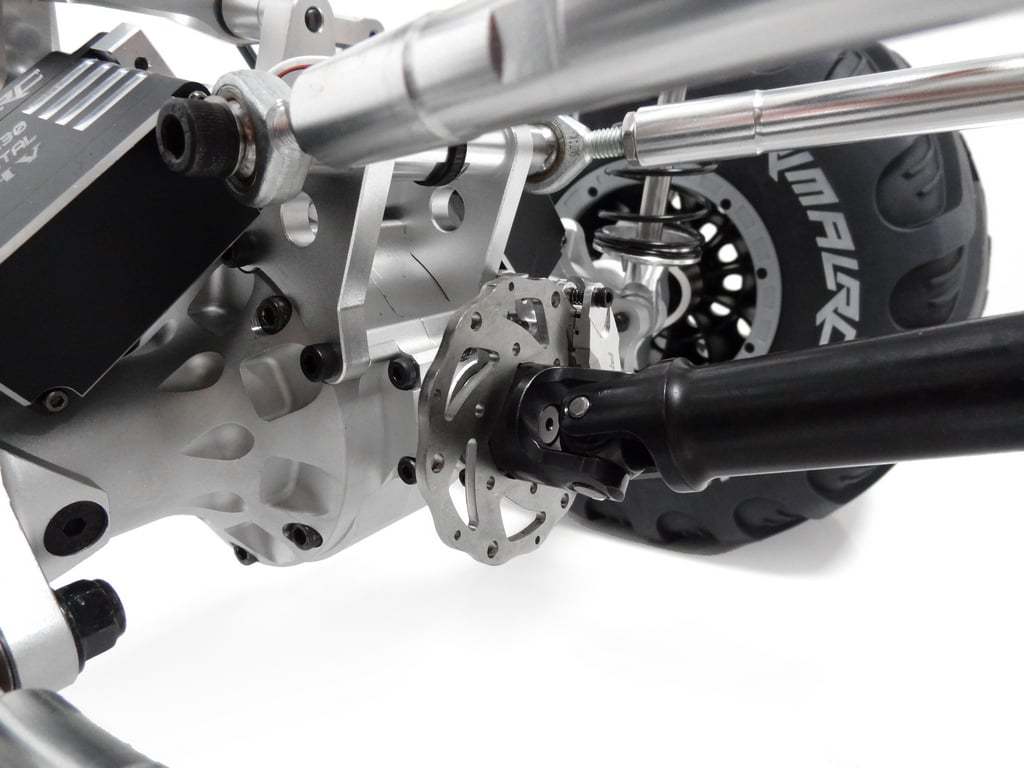

• Front and Rear axle mounted mechanical disc brakes.
• Strong Plastic roll cage and Strong 2-piece Poly carbonate body shell with detailed interior and RAMINATOR Truck Sticker Sheet.
• Radio controlled reverse feature.
• Strong CNC Aluminum parts used just about everywhere in this truck!
• Ball bearings used throughout the entire vehicle.
• Large 1200cc Fuel Tank for super long run times (a couple hours!)

Radio Features

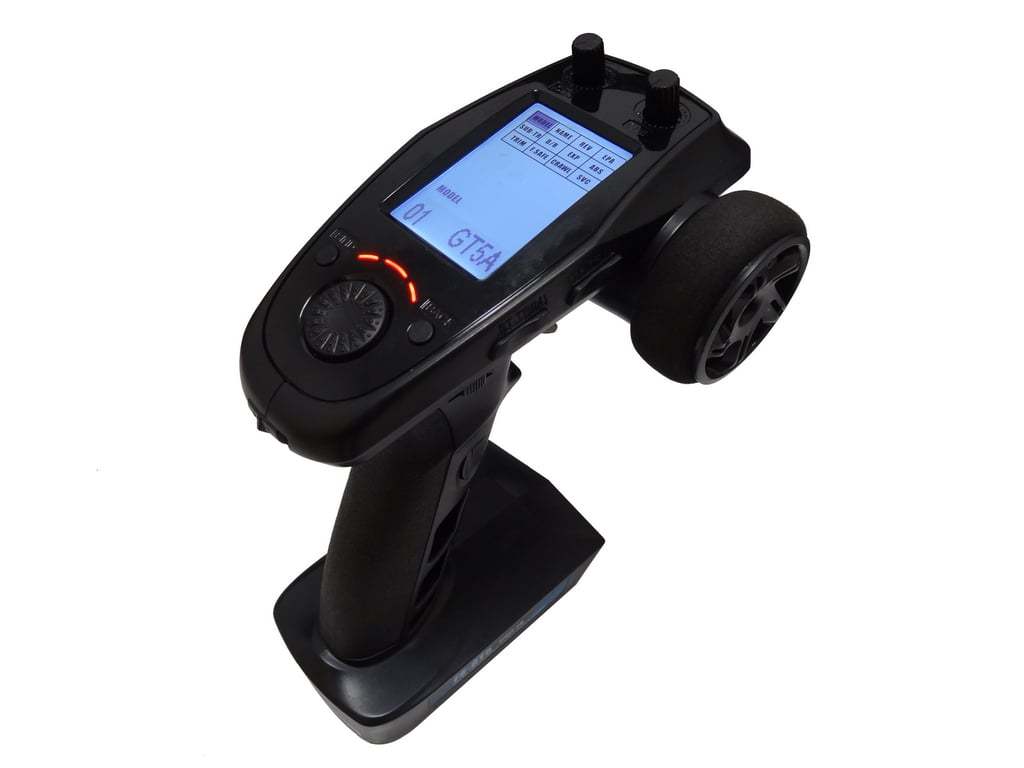

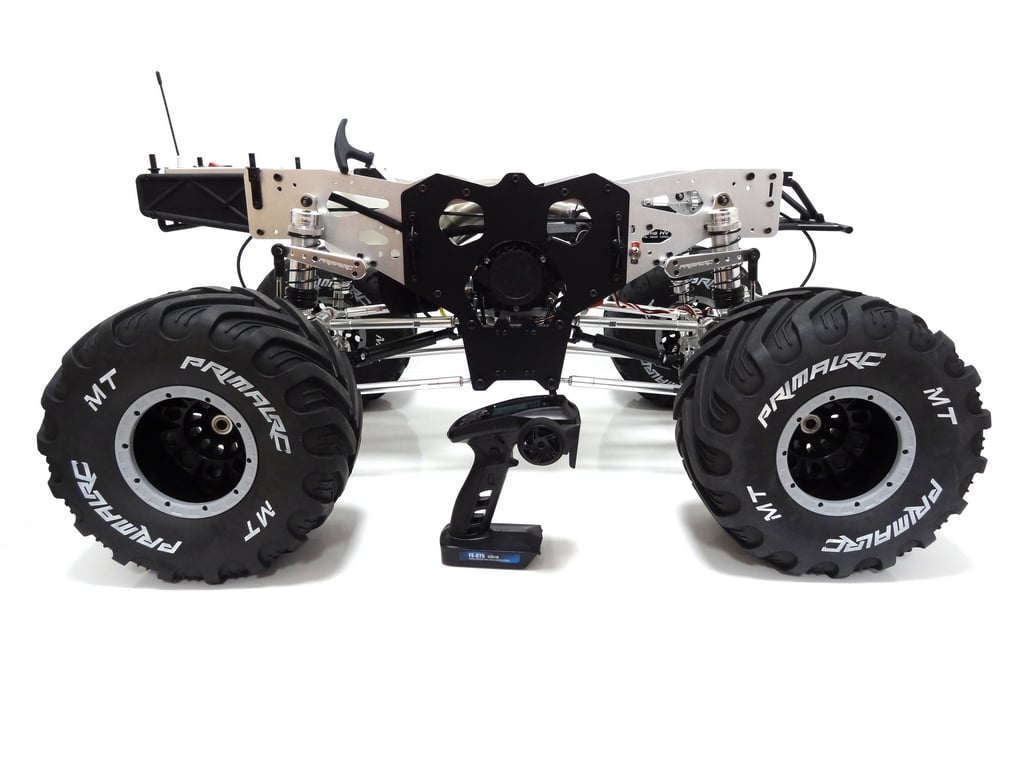

• FLYSKY FS-GT5 2.4 ghz 6 channel computer radio that features include:
• 4-AA Battery holder for light weight and improved balance.
• Easy to read LCD screen.
• 200 Meter max range 20 model memory.
• Servo reversing on all channels.
• Dual rate steering.
• End point adjustment on all channels.
• Exponential steering and throttle.
• Anti-lock braking, Digital trim display.
• Servo sub-trim for steering and throttle.
• 3 character model naming.
• Built in adjustable Fail-safe.
• Low voltage alarm.
• Crawl mode ready for 4 wheel steering set ups.
• Even more…..

Metal parts

• Steel 24mm wheel hubs.
• CNC Aluminum 6 piece modular frame.
• CNC Aluminum Dual servo steering system and servo saver.

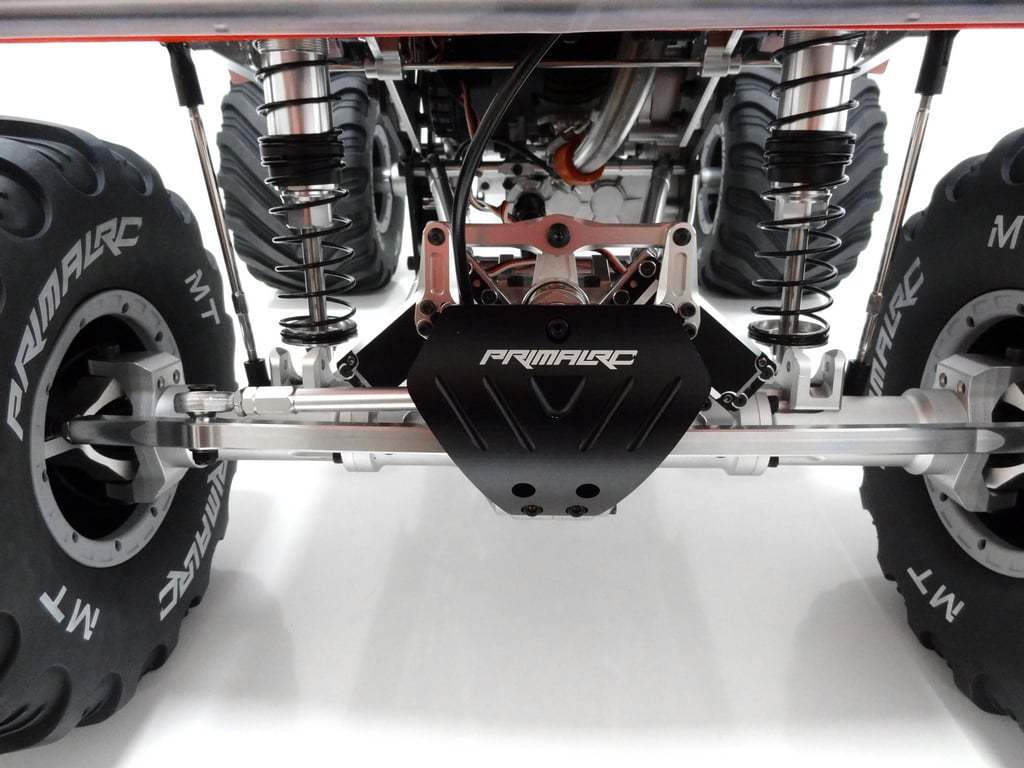

• CNC Aluminum front skid plate and axle/steering protector.
• CNC Aluminum chassis connectors.
• CNC Aluminum engine mounts.
• CNC Aluminum enclosed clutch brace.
• CNC Aluminum chain drive case cover.
• CNC Aluminum transmission case.
• CNC Aluminum front and rear brakes with steel rotors.
• CNC Aluminum Differential with steel oversize ring and pinion gears.
• CNC Aluminum Axle tubes, with dual ready shock mounts.
• CNC Aluminum Modular Axles.
• CNC Aluminum parts throughout the entire vehicle!

Electronic Features

• (2) HV 130KG Metal Cased Brush-less Steering Servos.

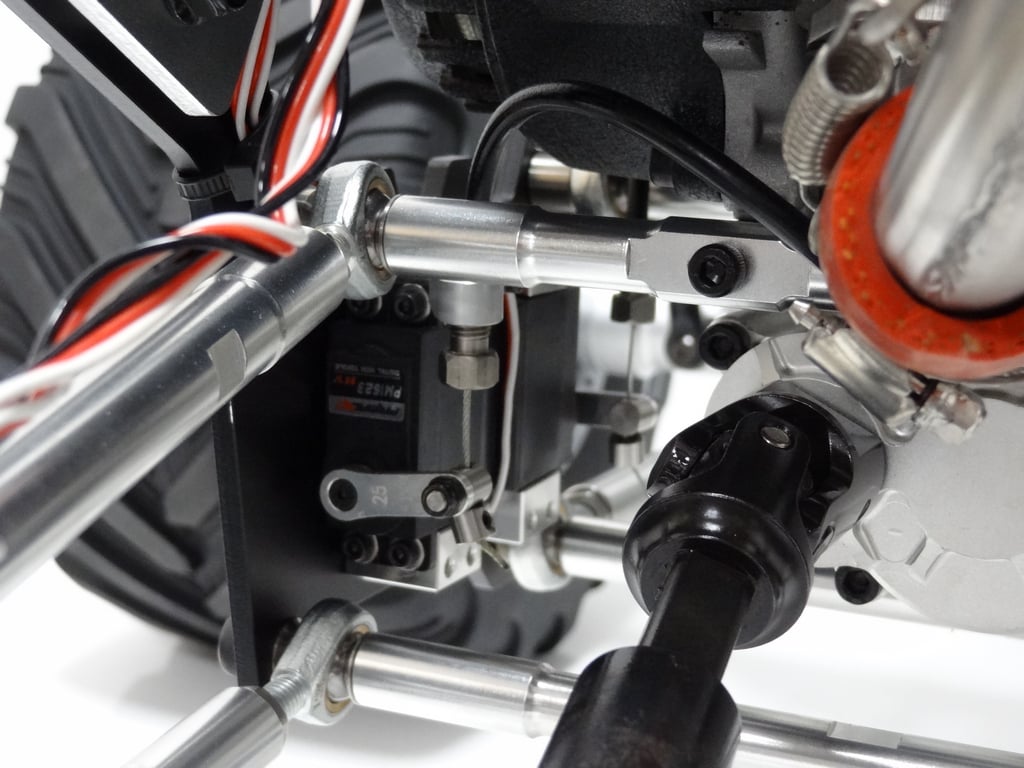

• Single HV 100KG Brush-less Brake Servo.
• HV 20KG Throttle Servo.
• HV 20KG Reverse Servo.
• 8.4 volt 3200mah Servo/Receiver Battery with wall charger and 30amp on/off switch.
• Remote activated engine kill switch.

For international buyers: If you’re having problems with shipping during checkout, please contact us at konnronn@outlook.com
Standard Features

Specifications

Skill Level Advanced
Speed 20-30+ MPH (with high-speed gears installed)
Length 39 inches
RTR Weight 85 pounds
Height 24 inches
Wheelbase 24 inches
Tires 12 x 7.5 inches
Track 31.5 inches
Wheel Diameter 5.5 inches
Wheel Width 6 inches
Minimum Ground Clearance 4 inches
