Note: Due to the hot sale of our products, there are a lot of customers pay at the same time, sometimes it will lead to credit card payment failure, please refresh the page to double-check the information and reconfirm, to the customer inconvenience, please understand, thank you.

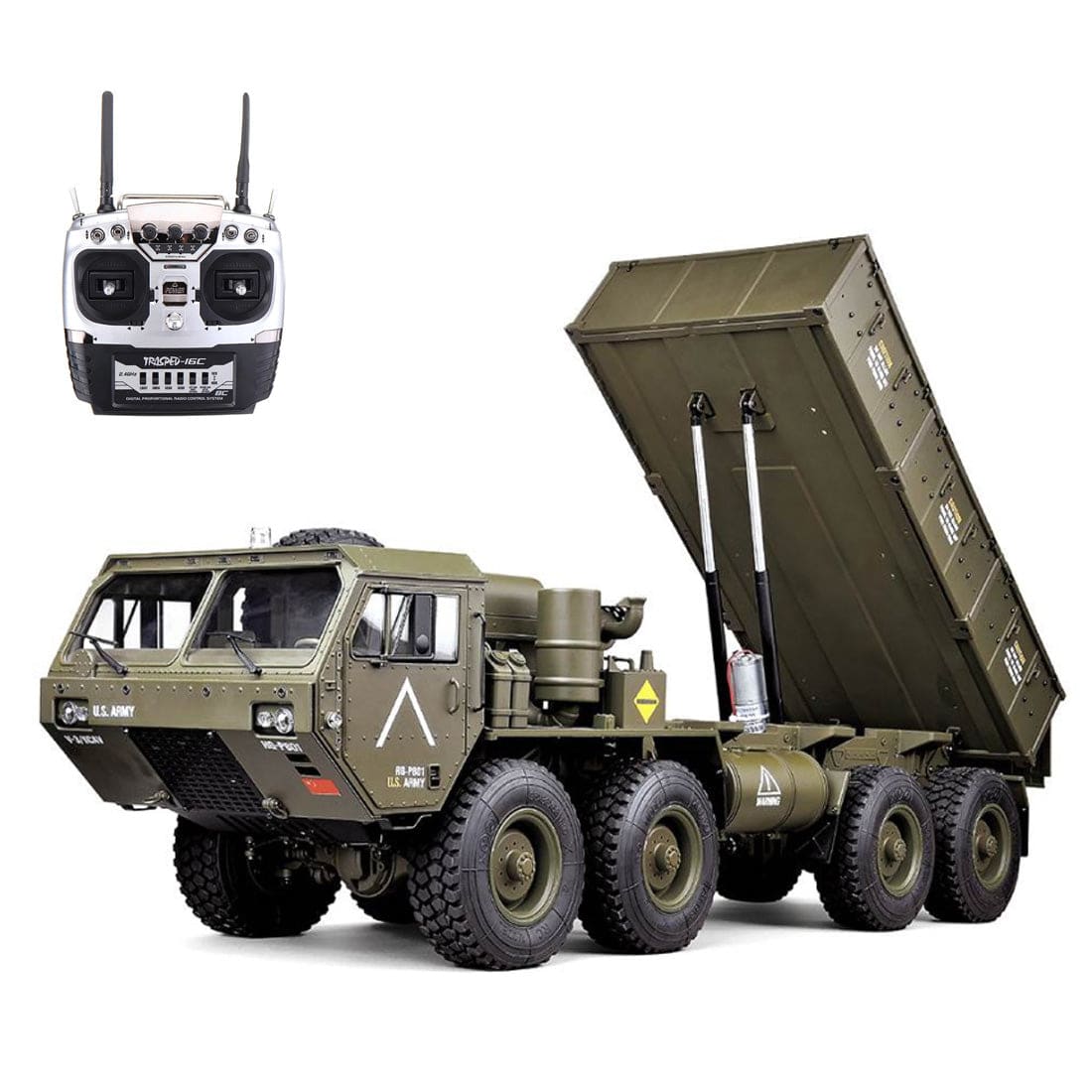

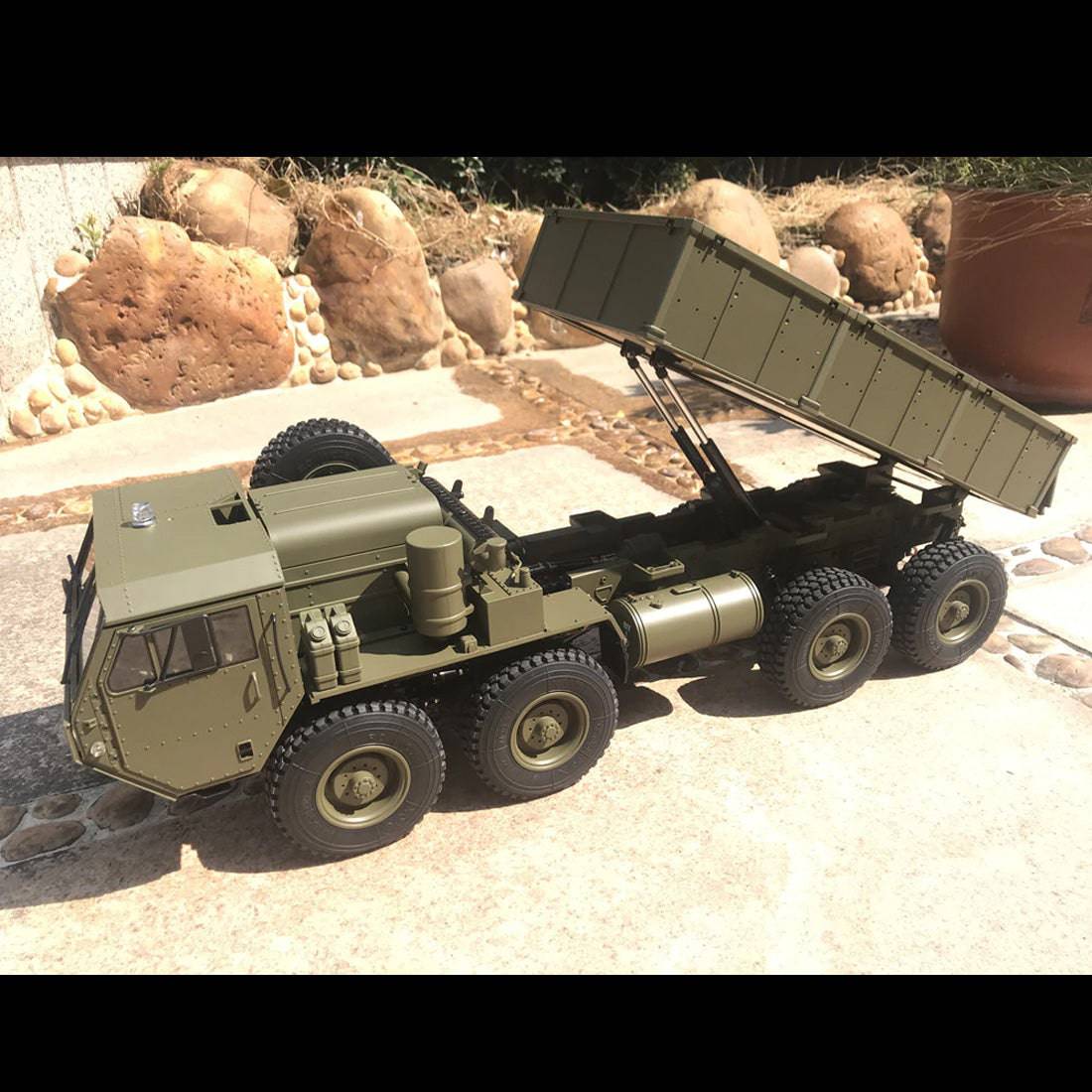

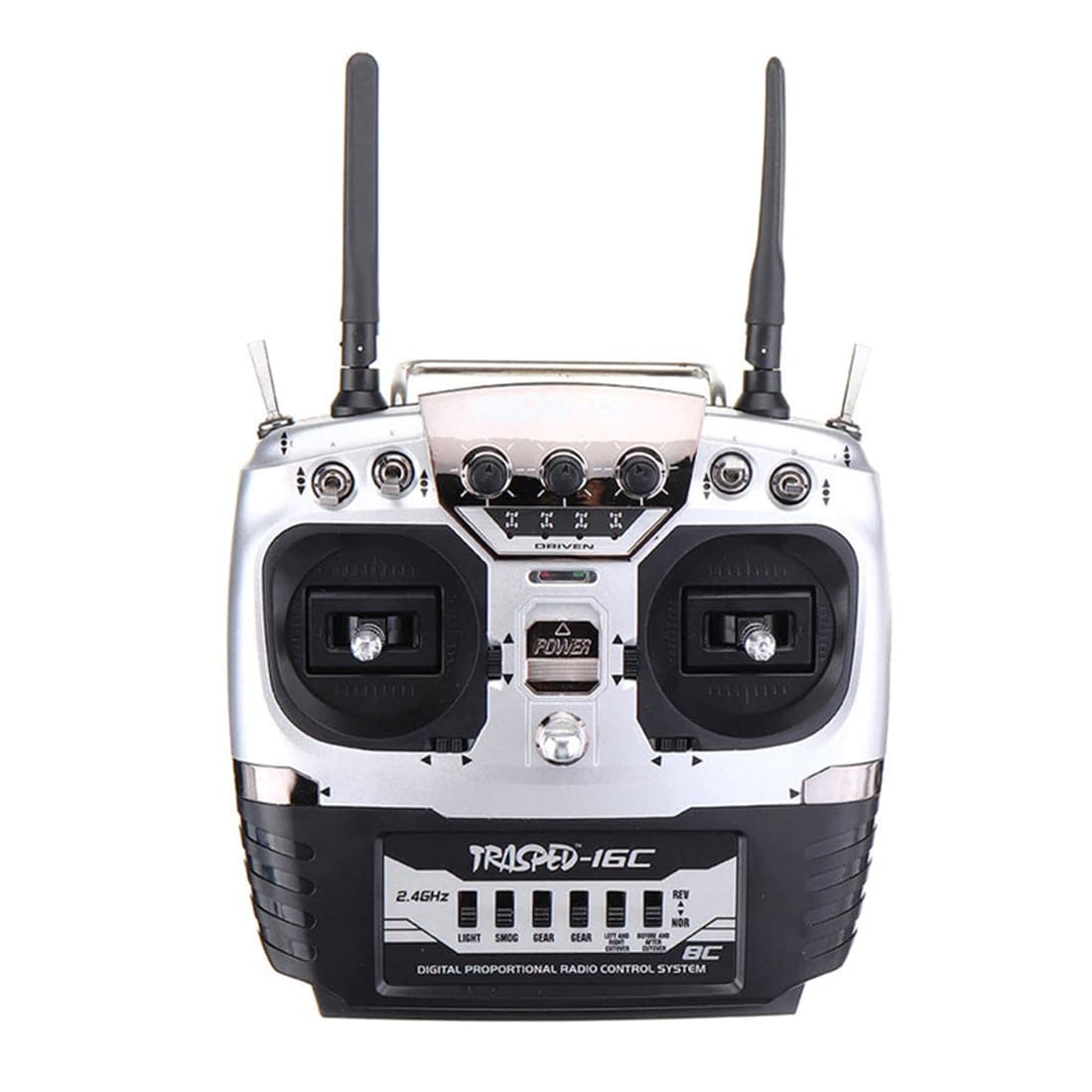

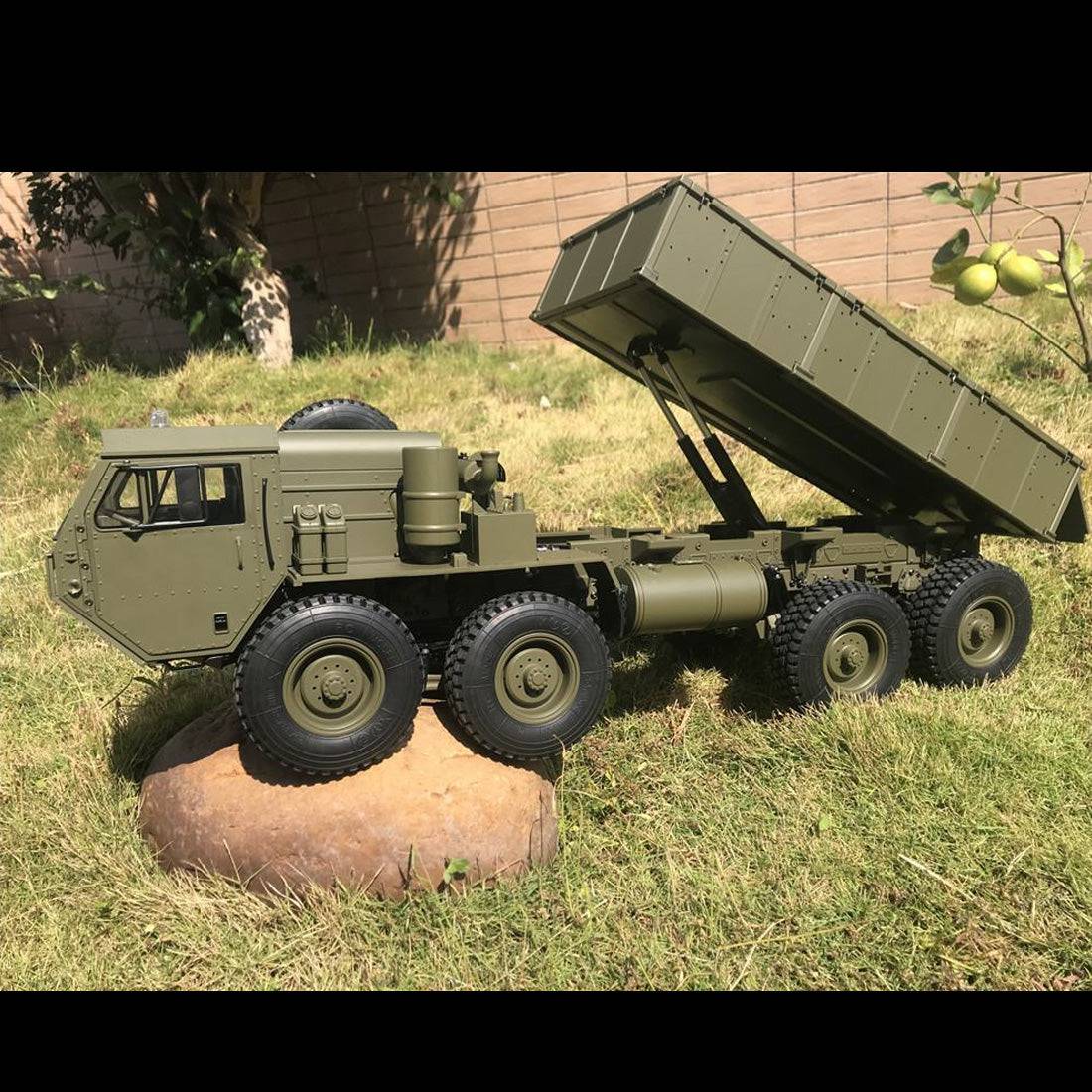

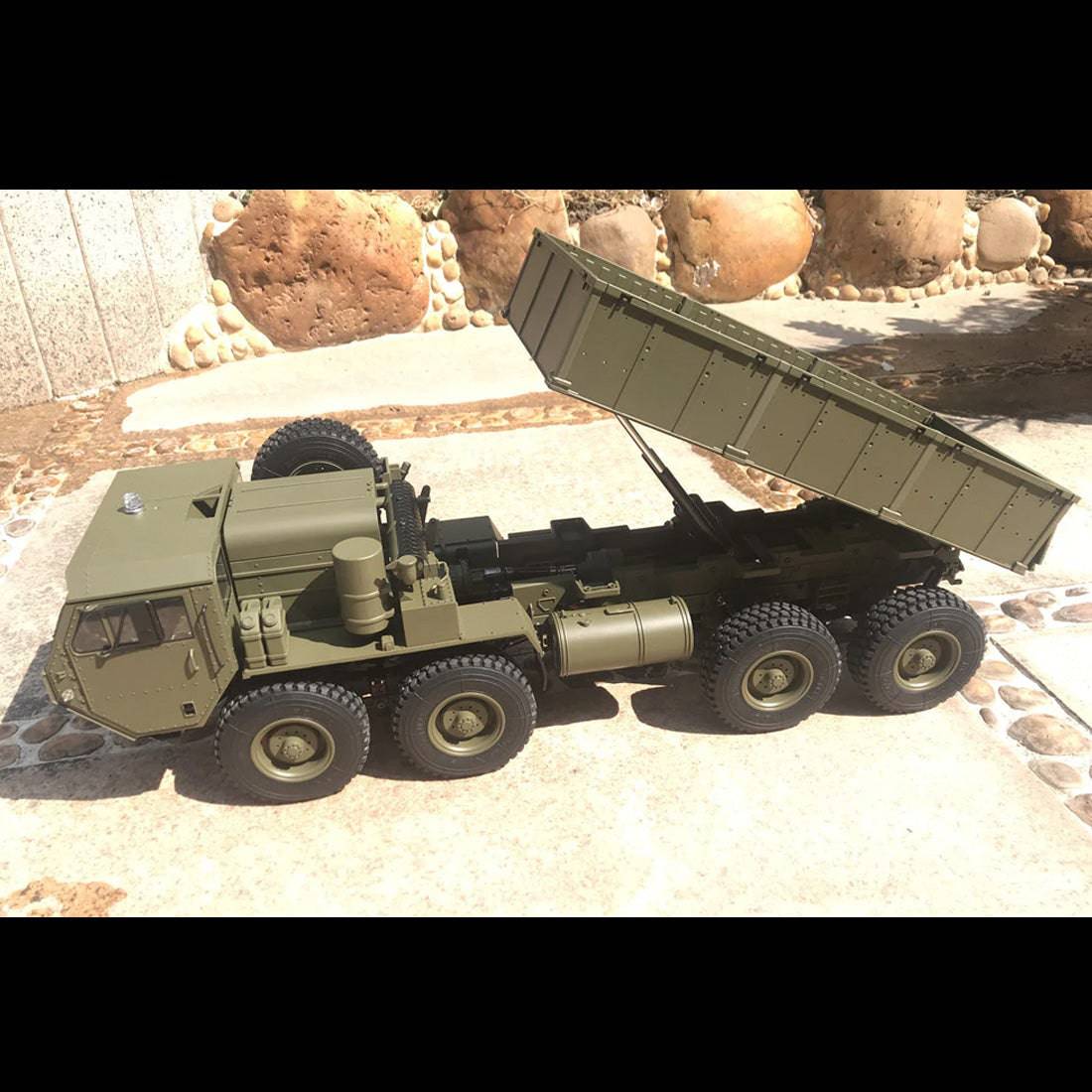

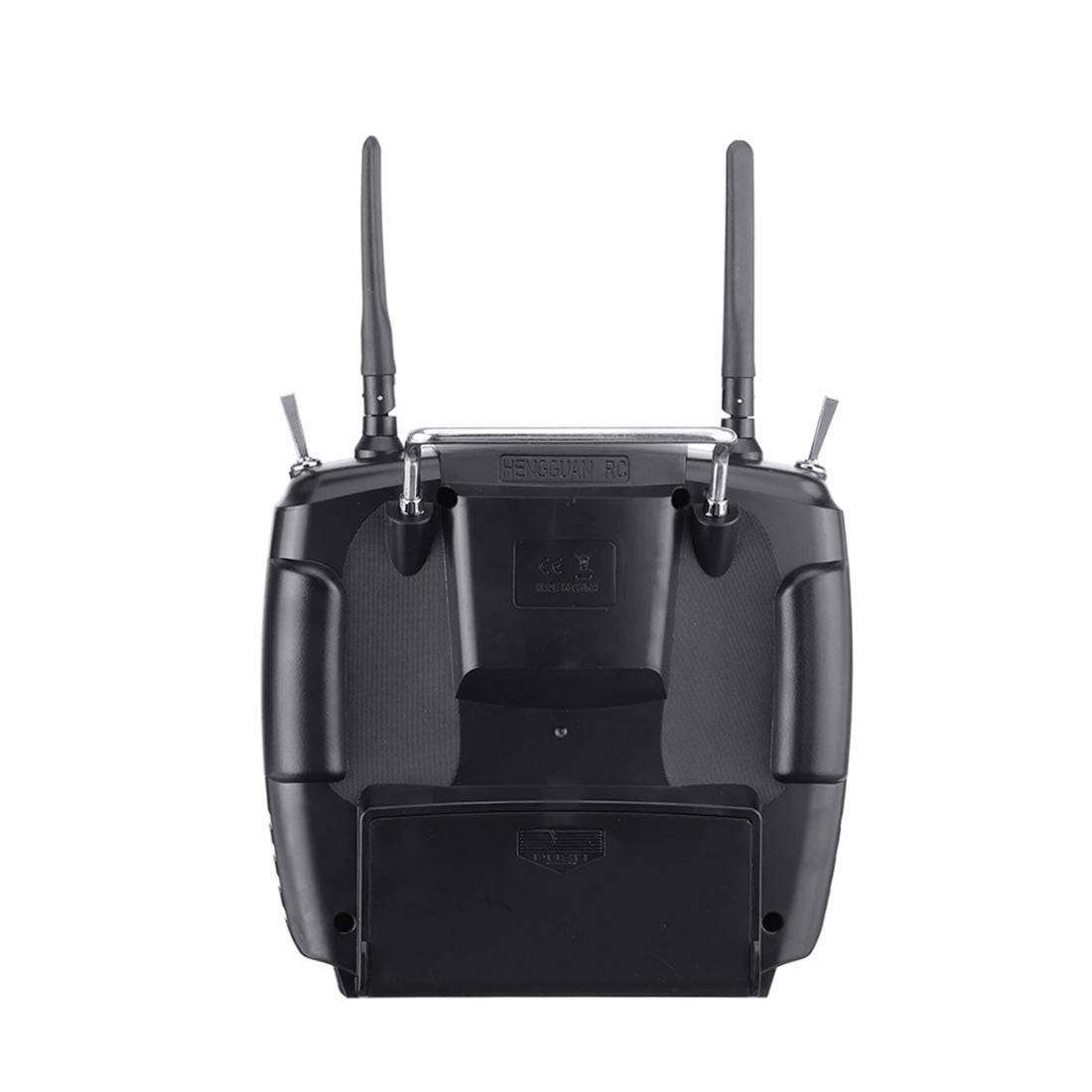

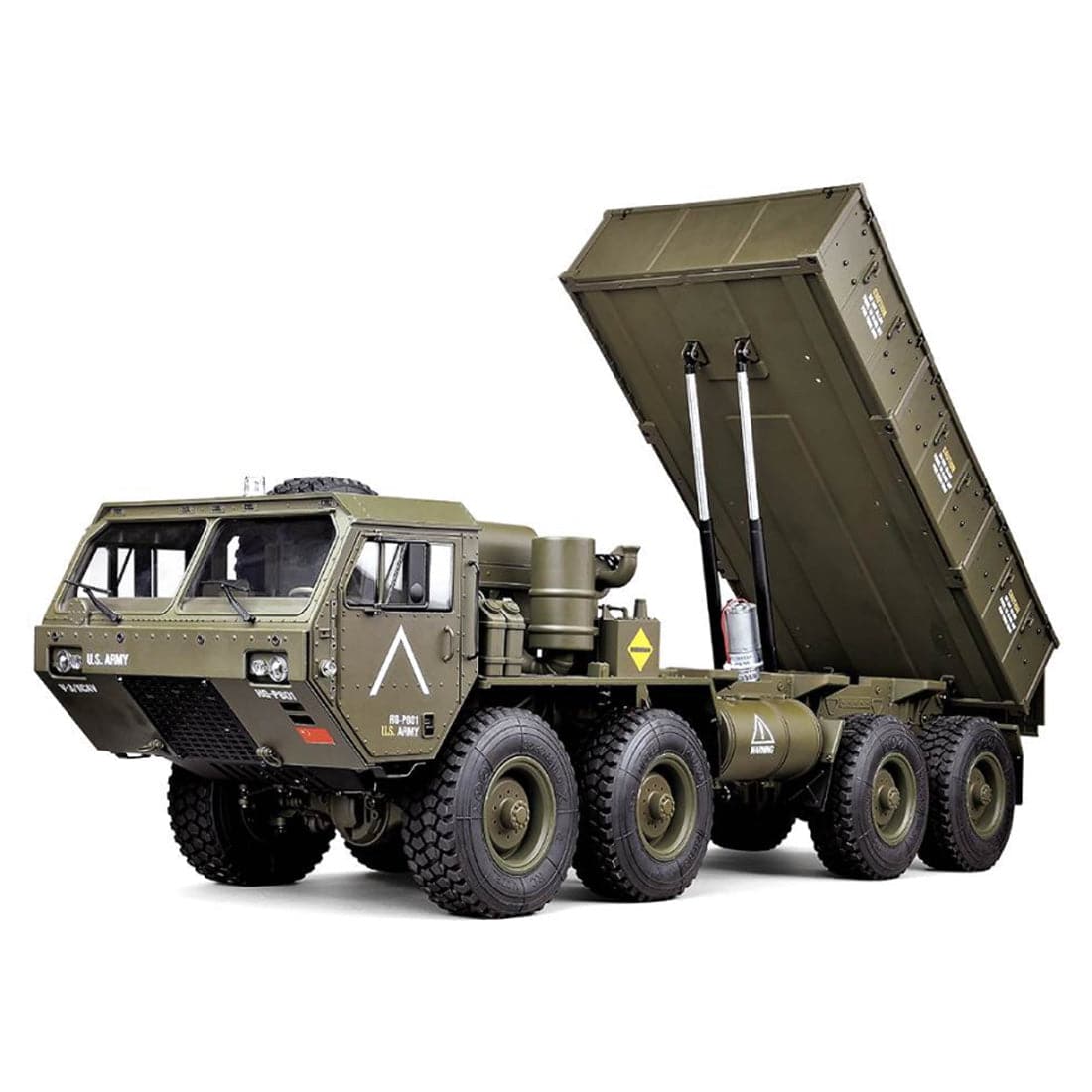

.The Difference Between This Product and P801 / P802: Remote control dump rising and falling (5KG load capacity) .2.4G 8CH automatic frequency synchronization full-scale synchronous remote control system, which can go forward, backward, turn left and right, brake, remote control remote dump dump up and down. (5KG load capacity) .1:12 full-scale simulation model of the whole vehicle, the chassis structure is made of zinc alloy material, and the first 4 wheels are driven by steel wire ropes to realize four-wheel synchronous steering in the same direction. .The secondary mechanical gear of the central transmission is adjustable (the remote control can be upgraded). .The front and rear axles adopt a tapered-to-straight high-load reduction transmission structure, spring steel leaf shock absorbers + telescopic double shock absorption, providing excellent protection of shock absorption performance. .Front and rear independent link type bridge hanging system .Variable-stroke universal drive shaft 7, 8x8 / 8-wheel full-time drive, 320A independent electronic speed governor, 550 high-torque motor uses planetary gear drive structure, strong power, can carry various equipment. .HG-P803A upgraded version with light combination and simulation sound combination. .HG-P803A has a standard version and a light upgrade version.
P803A Dump Bucket Telescopic Pole Parameters:
.Gear Reduction Ratio: 34 rpm telescopic 1mm .Operating Voltage (V): DC6 .Maximum Output Power (W): 1.6 .No-load Current (MA): <100 .Rated Jacking Force (KG): 5 .Rated Telescopic Speed (RLM / CM): 13 .Rated Current (A): <0.5 .Locking Force (KG): 7 .Stall Current (A): <2.6 .Telescopic Travel (mm): 88 .Tipping Angle of Dump Bucket: 40 °
Specifications:
.Color: As Shown .Material: Metal + Electronic Components + Rubber + Plastic .Brand: HG .Model: HG-P803A .Scale: 1:12 .Motor: 550 class high torque brush motor .Governor: 320A independent electronic governor .Steering Gear: 2Pcs 9kg bronze gear digital servos .Product Battery: 7.4V 3000mAh large rate lithium battery is recommended (Not Included) .Charger: 7.4V = 800mAh is recommended (Not Included) .Wheelbase: (128mm) x 258mm x (128mm) .Wheel Distance: 218.5mm .Wheel Diameter: R111mm .Remote Control Category: Full proportional synchronous control system .Channel: 8CH .Frequency: 2.4G HZ .Remote Control Distance: ≥100M .Remote Control Battery: 4 x 1.5V AA battery (Not Included) .Low Speed: 12km / h .High Speed: 18km / h .Product Dimensions: 74 x 22 x 24cm .Product Weight: 12000g .Package Dimensions: 78 x 30 x 28cm .Package Weight: 14000g .Packing: Graphic Carton
Package Content:

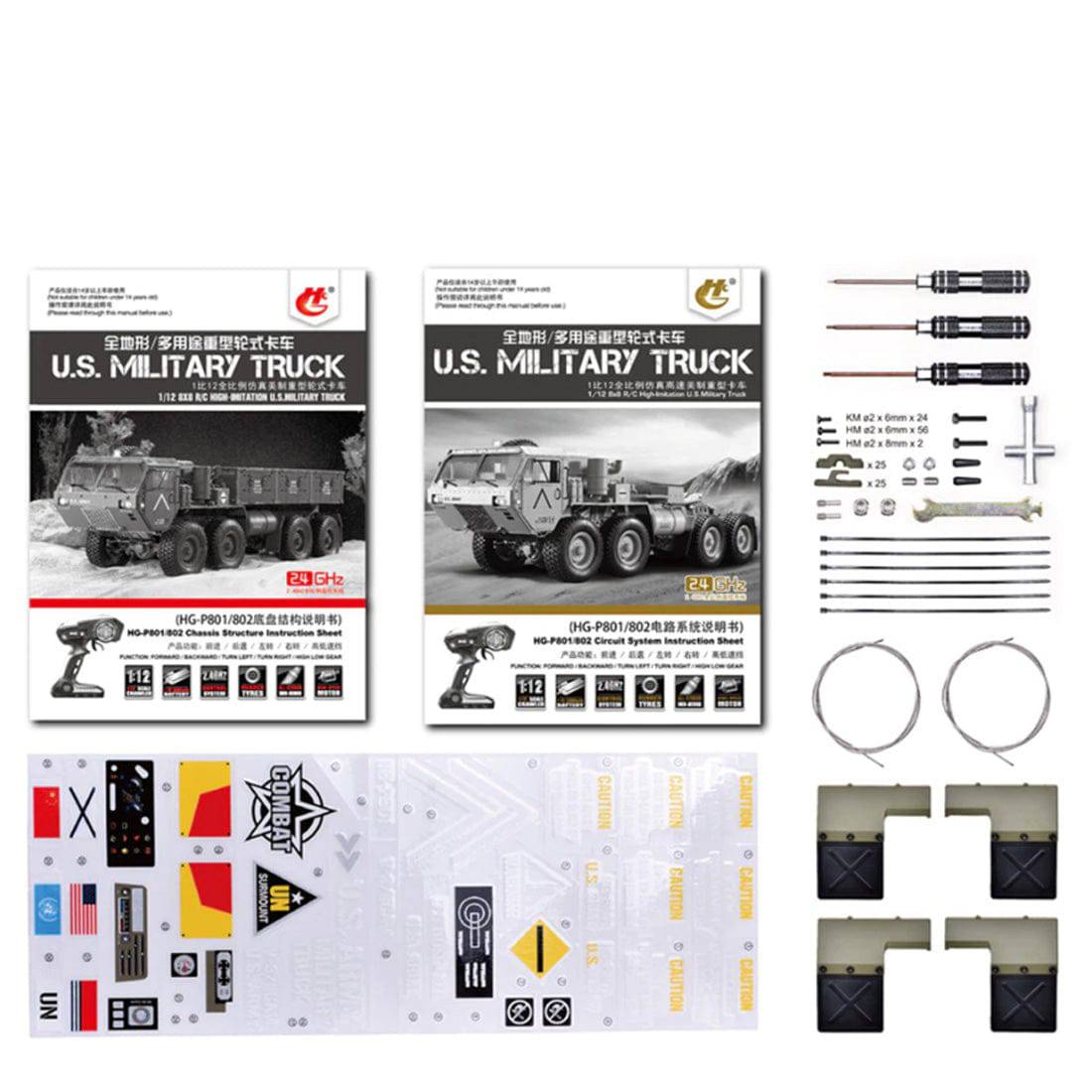

.1 x P803A Heavy Truck .1 x Remote Control .1 x English Manual .4 x Nylon Cable Tie( 3 x 200mm) .1 x Sticker .12 x Car Hopper Side Panel Hook .24 x Frame Limiting Part .4 x Traction Hooks At Both Ends .1 x 1.5mm Hexagon Socket Screwdriver .1 x 2.0mm Hexagon Socket Screwdriver .1 x 2.5mm Hexagon Socket Screwdriver .1 x Cross Wrench (Small) .2 x Beam Bolt .1 x Small Wrench .2 x M4 Flange Nylon Locknut .2 x Screw(M4 x 4 ) .60 x Screw(HM2 x 6MM ) .2 x Screw (HM2 x 10MM ) .12 x Screw (TM2 x 6MM ) .4 x M2 Screwnut .2 x Mud Guard(L) .2 x Mud Guard(R) .1 x Reflector(L) .1 x Reflector(R) .1 x Lighting Set .1 x Sound Set
